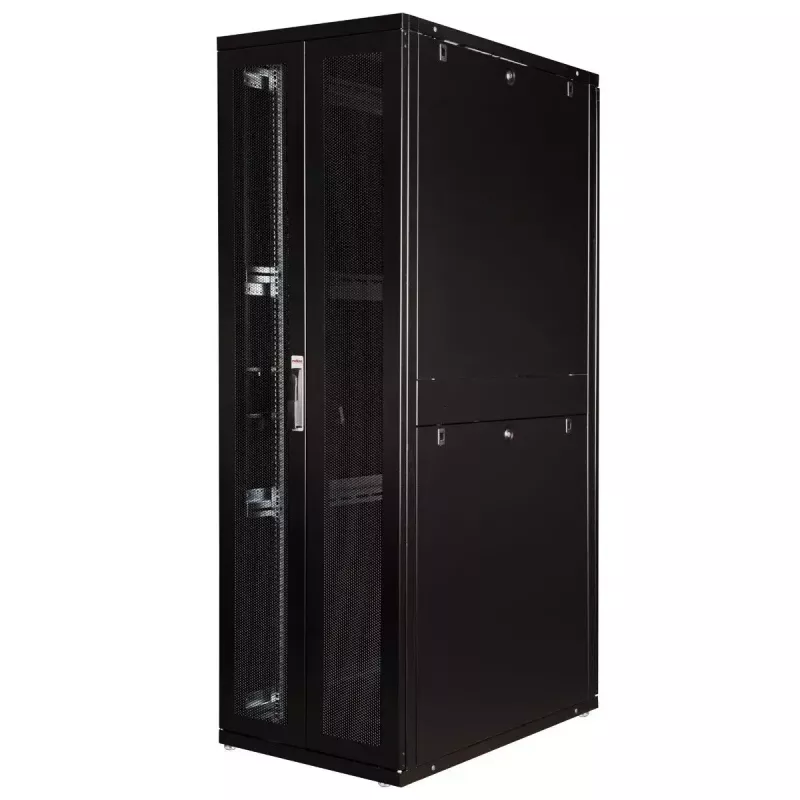

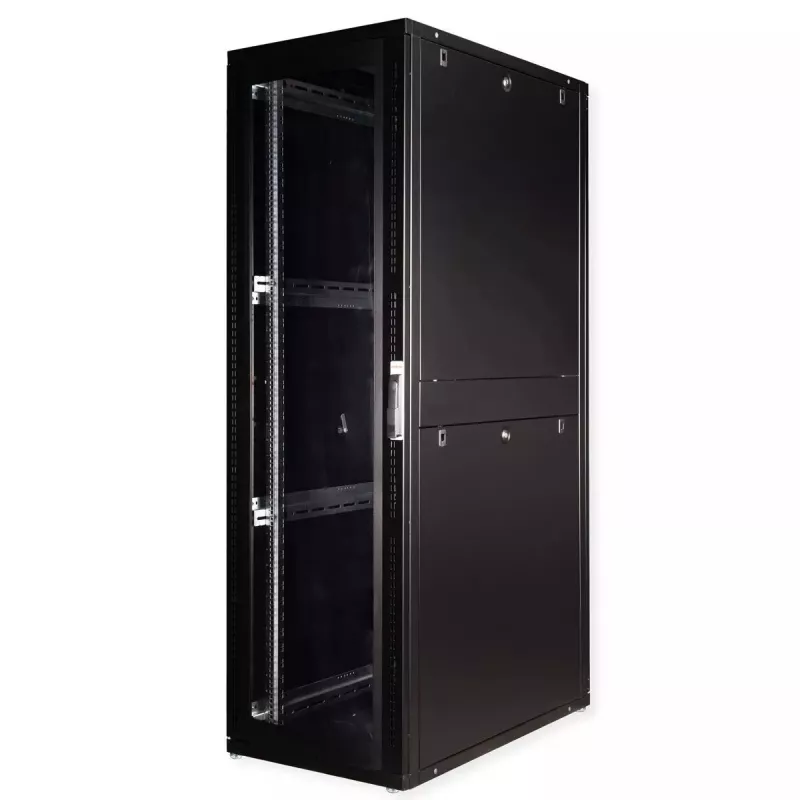

Freestanding rack ROLINE 19-inch server rack Pro 42U 600x1000 black

ROLINE 19-inch server rack Pro 42U 600x1000 black is a freestanding server enclosure designed for professional network and server installations. With a 42U capacity and a maximum load capacity of 1000 kg, this steel cabinet provides a stable, secure environment for servers, switches and other rack-mounted equipment. The enclosure features adjustable feet, an IP20 rating and a perforated roof and doors for improved airflow. Internal 19" profile rails are galvanised, height-marked and depth-adjustable to support flexible mounting and cable management.

Advantages

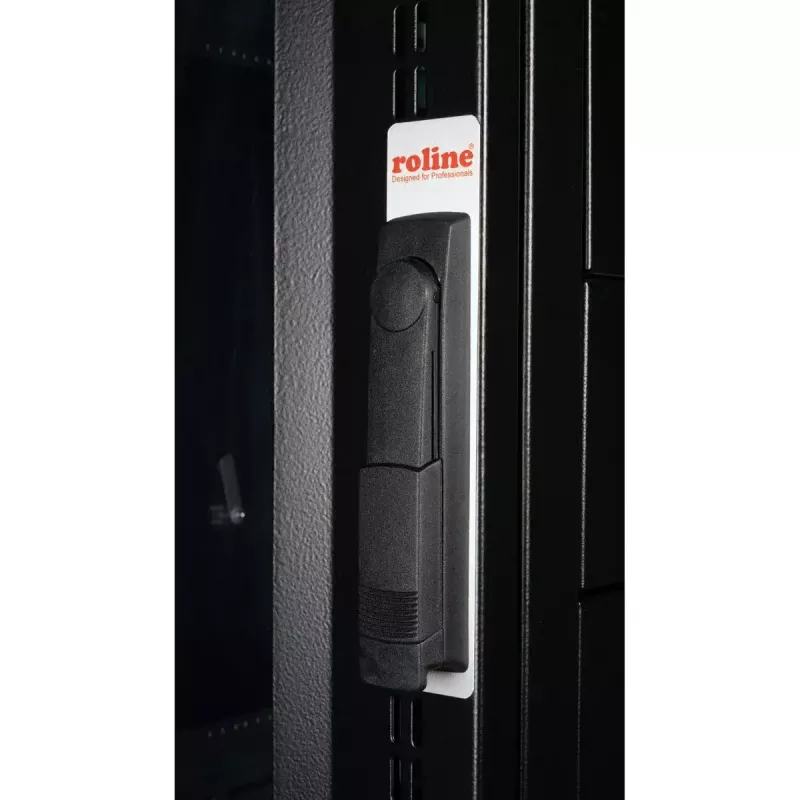

The cabinet combines a robust steel construction with a material thickness up to 2.0 mm and an electrostatically applied powder coat finish in black (RAL 9005). Perforated single-leaf front doors and double-leaf rear doors, each fitted with swivel handles and profile half cylinder locks, promote ventilation and secure access. Side and roof cable inlets with brushes, a slide-on inlet with foam rubber seal and a brush inlet in the base allow organised cable routing. A perforated roof cover enables easy fan module installation. Modular lockable and removable side panels and changeable hinges enhance serviceability and installation flexibility.

Suitable for

• Data center and server room rack mounting
• Network cabinets for switches, patch panels and UPS units
• Telecommunications and infrastructure equipment installations
• Environments requiring organised cable routing and ventilation

Key specifications

• Form factor: 19-inch freestanding server rack
• Rack units: 42U
• Dimensions (W x D): 600 x 1000 mm
• Maximum load capacity: 1000 kg
• Material: steel, up to 2.0 mm thickness
• Finish: electrostatic powder coating, black (RAL 9005)
• Protection rating: IP20

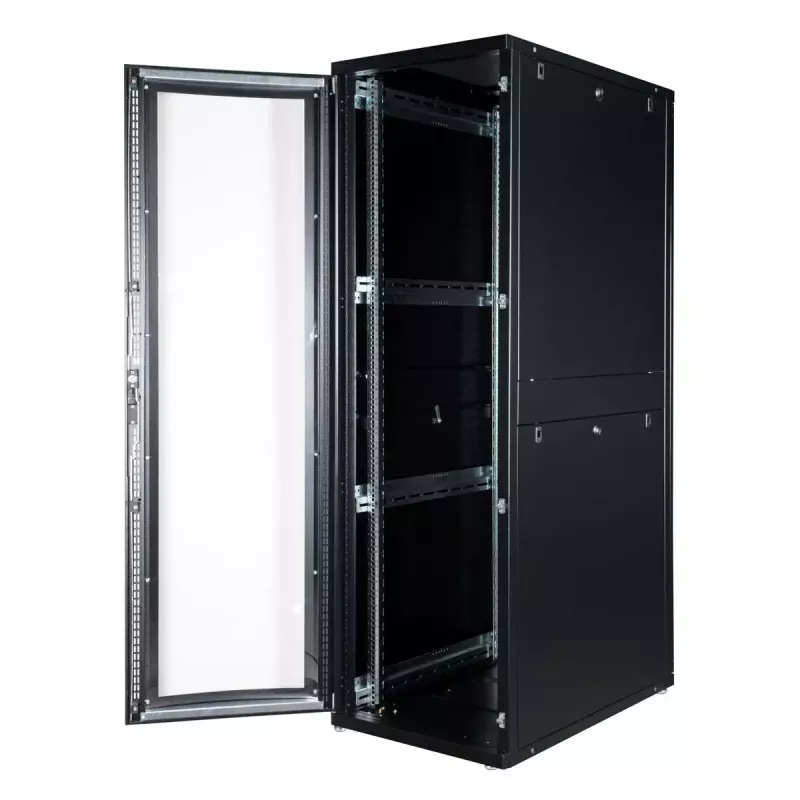

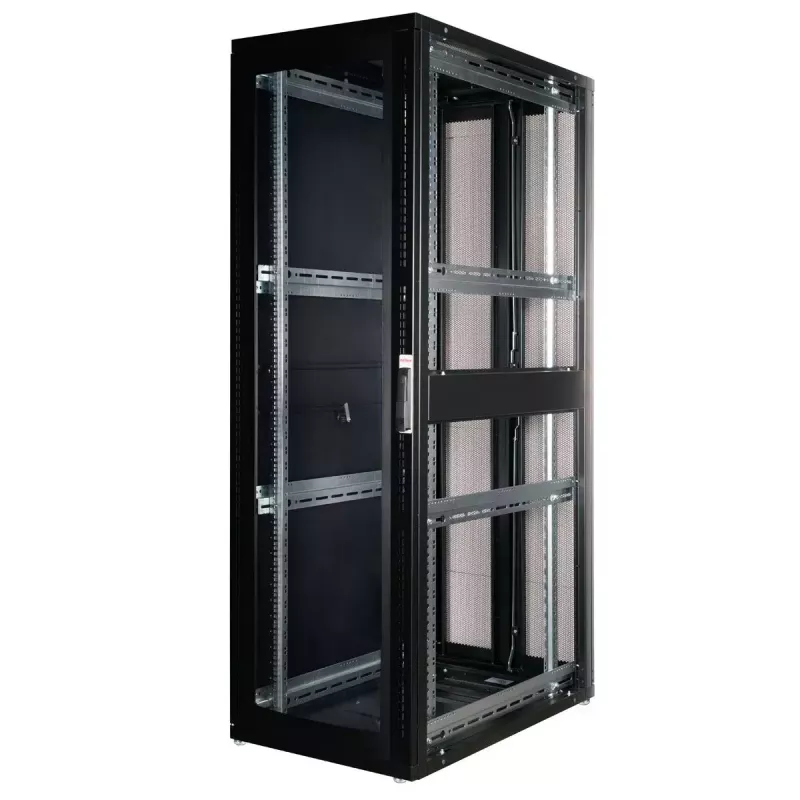

• Internal rails: two pairs of galvanised 19" profile rails, height-marked and depth-adjustable, connected with depth braces
• Doors: perforated front (single-leaf) and rear (double-leaf) with swivel handles and profile half cylinder locks
• Cable management: side and roof inlets with brushes, slide-on inlet with foam rubber seal, additional brush inlet in base (for applicable widths)
• Access: modular lockable and removable side panels, horizontally divided from 42U
• Weight: 100 kg

How to use

Place the freestanding rack on a level, load-bearing surface and adjust the feet to ensure the cabinet is stable and plumb. Install the galvanised 19" profile rails at the required height units and adjust their depth according to the equipment depth. Mount servers and rack devices using appropriate rack screws and cage nuts into the marked U positions. Route network and power cables through the provided brush inlets and slide-on inlet with foam rubber seal to maintain tidy cable management and reduce dust ingress. If additional ventilation is needed, fit fan modules to the perforated roof cover following the fan manufacturer’s instructions.

Recommendations

For safe operation, distribute equipment weight evenly across multiple U positions and observe the 1000 kg maximum load. Ensure adequate airflow by leaving free space around air intakes and use the perforated doors and roof for forced ventilation if required. Secure side panels and doors with the provided locks during normal operation and perform periodic checks on mounting rails, cable routing and fasteners to maintain stability and accessibility.
