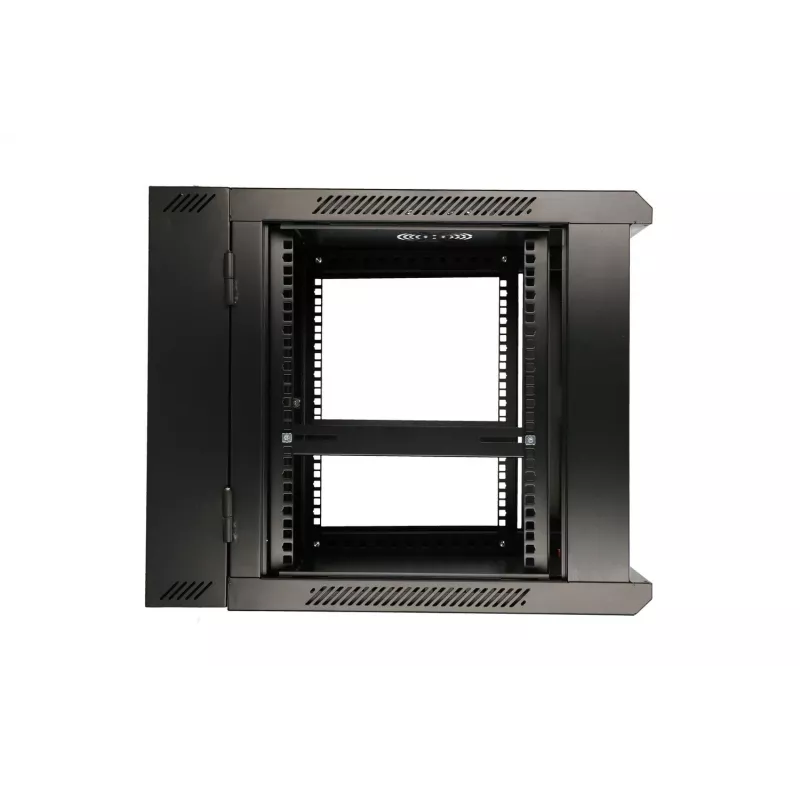

Extralink Rackmount cabinet 9U 600x600 AZH Black wall mounted, swing type
Shipping & Returns
-90x90h.webp "Build-Your-Own Gaming PC — Ryzen 7 7700 + RTX 5070, 32GB DDR5 | DistriNode")
EXTRALINK rack cabinet AZH, 9U, 600x600, two-sectional

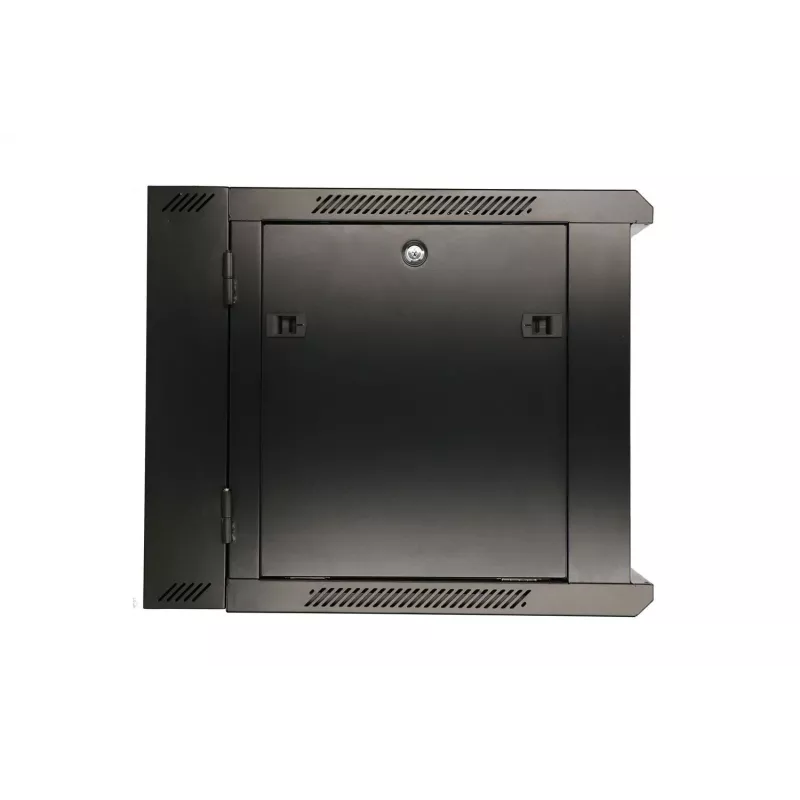

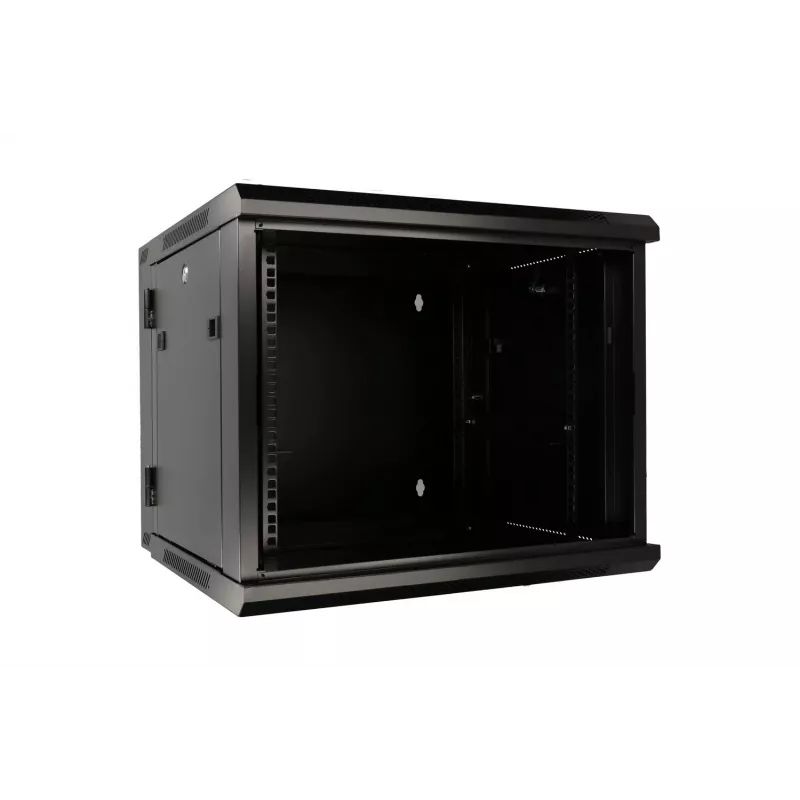

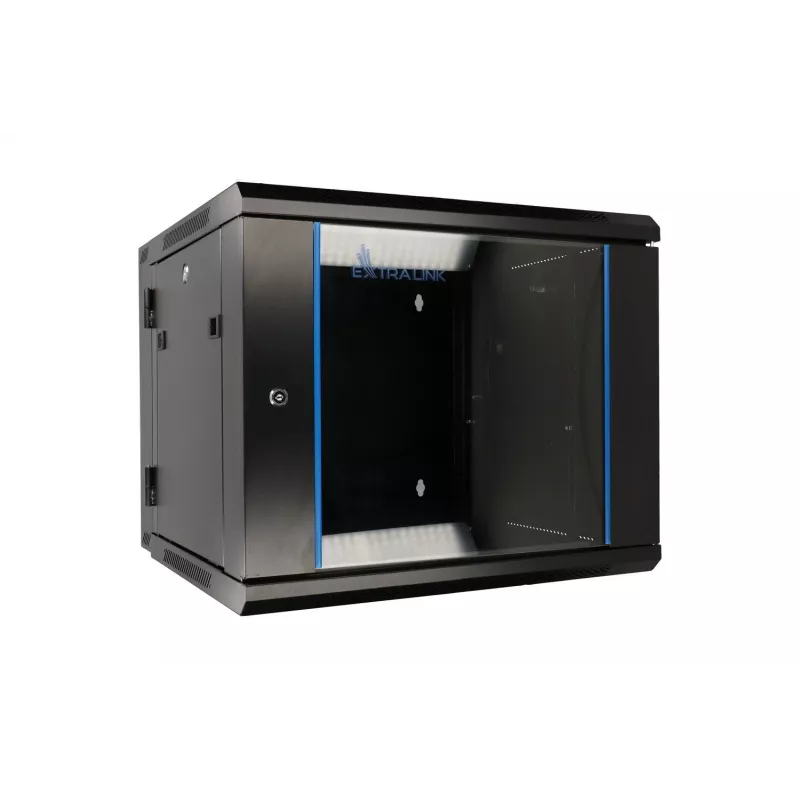

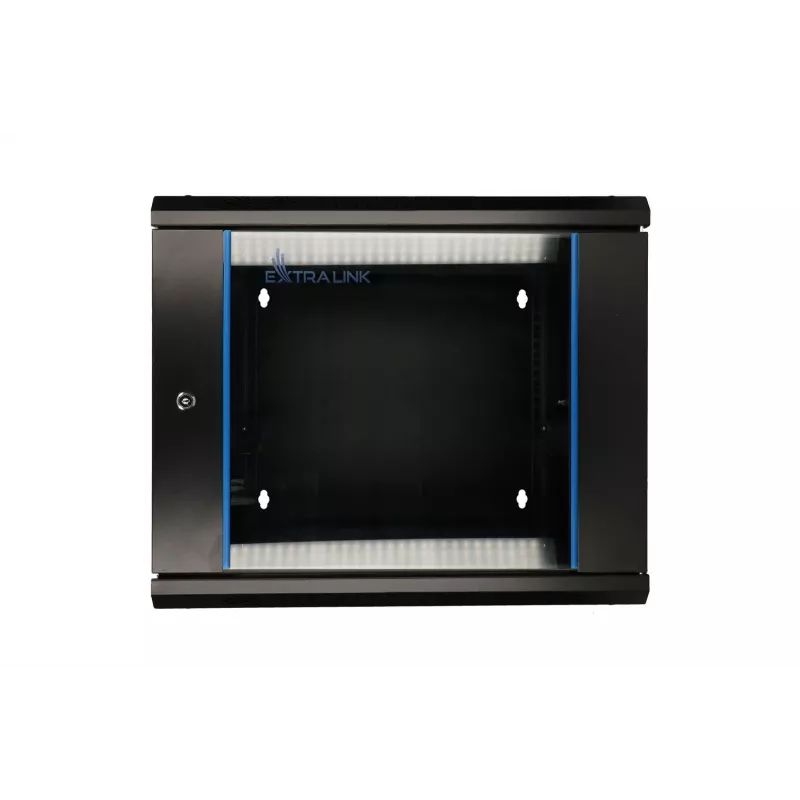

The Extralink cabinet is designed for wall mounting in offices, network server rooms and control rooms of CCTV installations. The external walls are made of cold-rolled steel sheet, while the front door has a tempered glass pane that can be opened to the left or right. Two-section construction facilitates access to the installed components from the back.
Clearly marked height

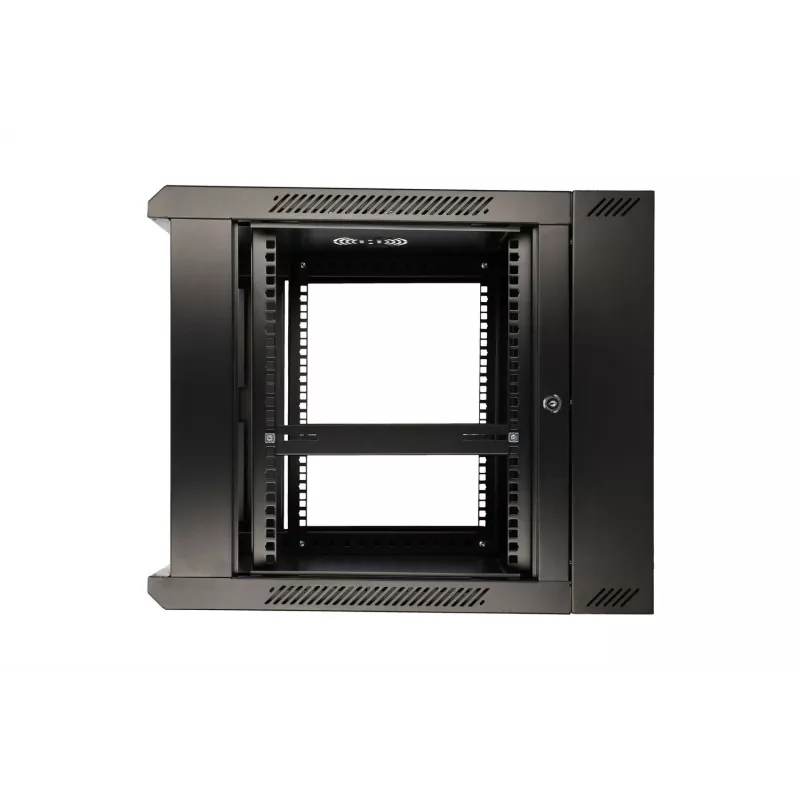

Vertical rails have a corresponding height designation, which is 9U (unit). The total height of the cabinet is 50.5 cm.
Easy removal of side walls
Snap fasteners on the side walls allow for their disassembly. Locks and keys are included.

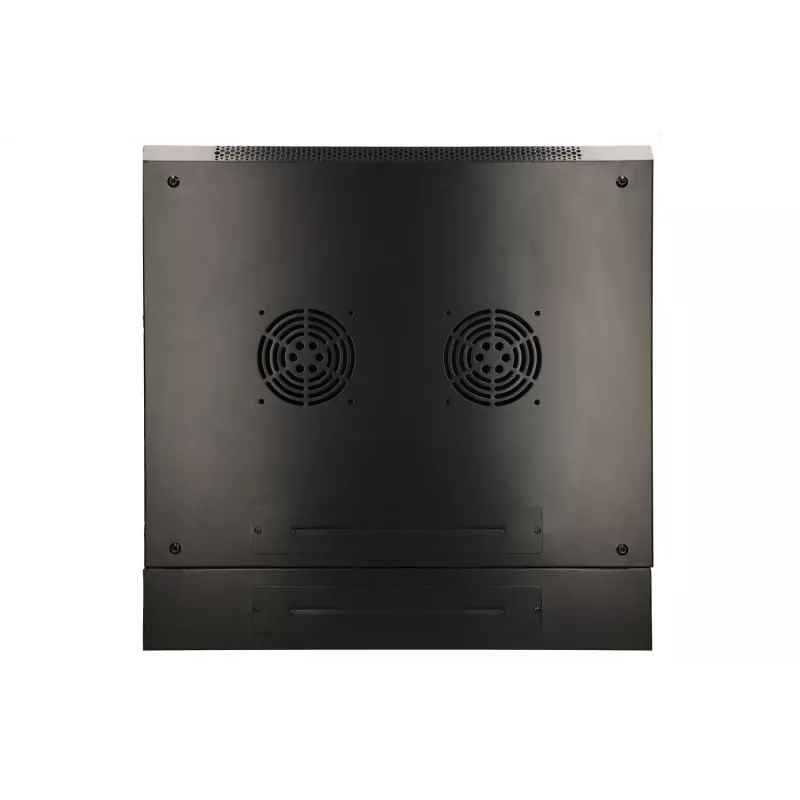

Fan-installed ceiling
On the ceiling of the cabinet there are 2 places to install fans for better cooling of the devices, as well as 2 additional passages for pulling out cables.
Cabinet construction - drawing
Features
- Standard 19'' mounting, welded frame, reliable design
- The frame construction is prepared for self-assembly, which facilitates transport and saves shipping costs
- Standing/Wall Mounting
- Easy installation (patent)
- Removable side panels
- Holes for cable entry, both on the top cover and on the bottom panel
- Tempered glass front door, swivel angle exceeding 180 degrees
- Two-sectional construction
| Key lock | Tak |
| Rack rails | Tak |
| Frame type | Closed |
| Screws included | Tak |
| Size (imperial) | 19,0000 |
| Height | 750,0000 |
| Width | 600,0000 |
| Depth | 600,0000 |
| Product colour | black |
| Maximum weight capacity | 60,0000 |
| Soundproof | Nie |
| Rack capacity | 9u |
| Type | Wall mounted rack |
| Nuts included | Tak |
| Removable back door | Nie |
| Removable front door | Tak |
| Back door construction | metal |
| Front door construction | glass_steel |
| Side panel construction | metal |
| Side panel key lock | Tak |
| Back door key lock | Nie |
| Front door key lock | Tak |
| Side panels included | Tak |
| Package depth | 540,0000 |
| Package height | 260,0000 |
| Package width | 640,0000 |
| Cooling type | passive |
| Material | metal |
| Removable side panels | Tak |
