EATON CORPORATION 3P EllIPSe 1700 USB DIN 1700VA/1040W

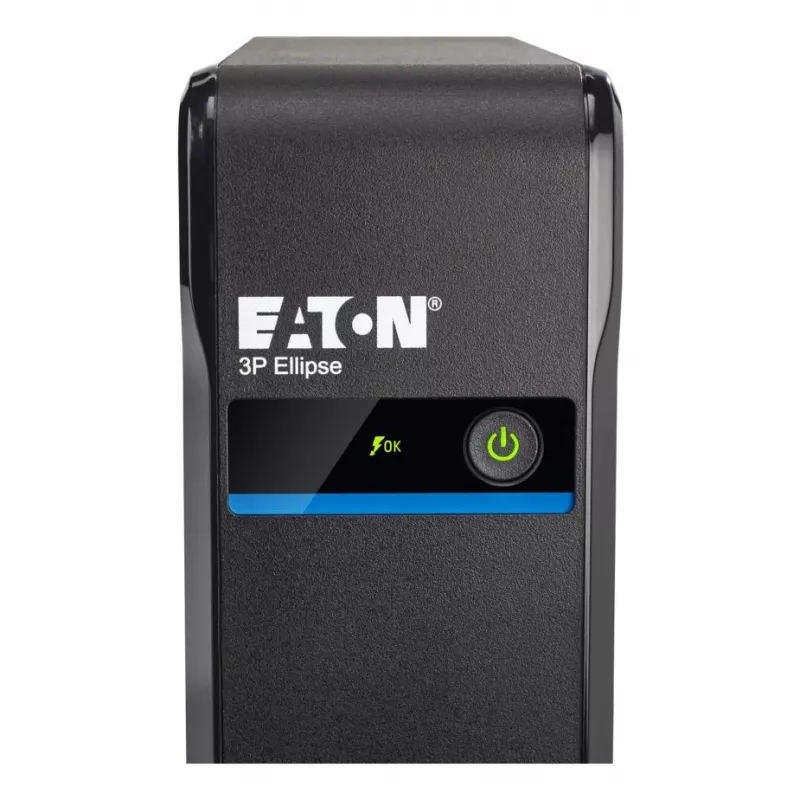

The Eaton 3P Ellipse UPS is a standby uninterruptible power supply with 1.7 kVA (1040 W) output capacity designed to protect sensitive electronic equipment. It offers eight AC outlets, built‑in USB charging and a 9 Ah battery to provide short‑term backup power during mains interruptions. The unit has a compact tower form factor, black finish and an input connector type C14.

Advantages

The UPS delivers reliable short‑term power backup for workstations and network devices, combining eight AC outlets that include protected and surge‑only sockets. Integrated USB charging ports allow convenient power for mobile devices while the 9 Ah battery provides immediate hold‑up time. Its compact, lightweight design (7.8 kg) simplifies installation in small office or home environments.

Suitable for

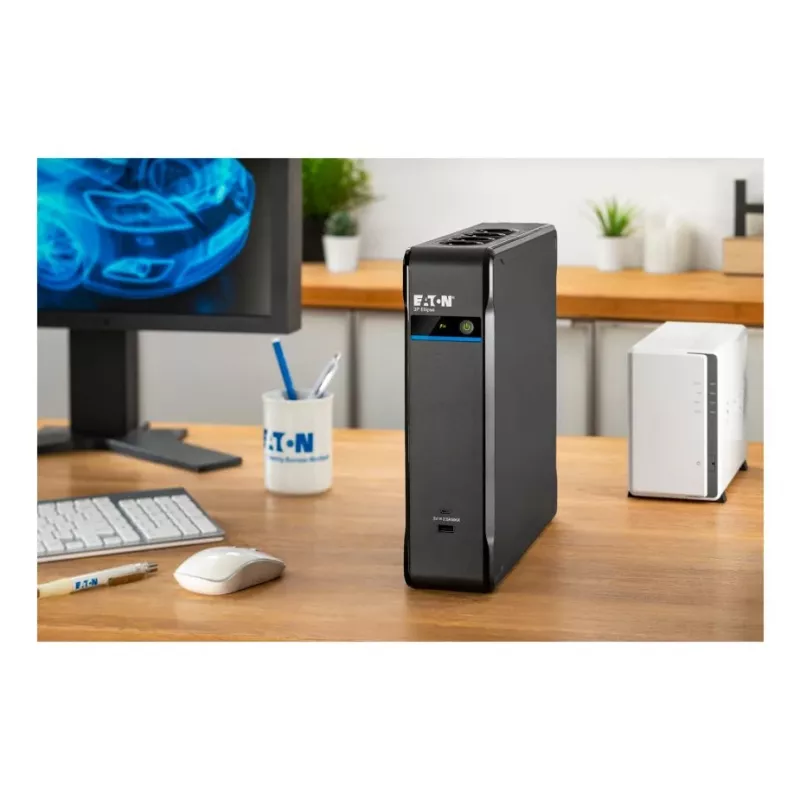

• Home office computers and workstations
• Network equipment such as routers, switches and modems
• Point of sale terminals and small servers
• Peripherals and sensitive electronic devices requiring surge protection and short backup

Key specifications

• Brand: EATON
• Model / MPN: 3P1700UD
• Output power capacity: 1.7 kVA
• Output power: 1040 W
• AC outlets: 8 (combination of protected and surge‑only Schuko sockets)

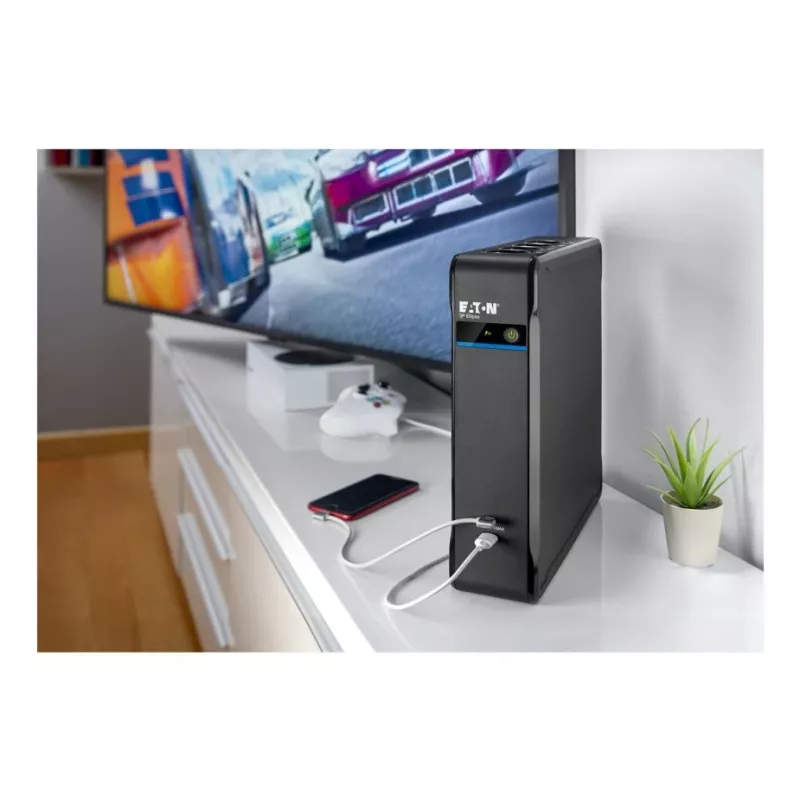

• USB ports: 2 (USB charging)

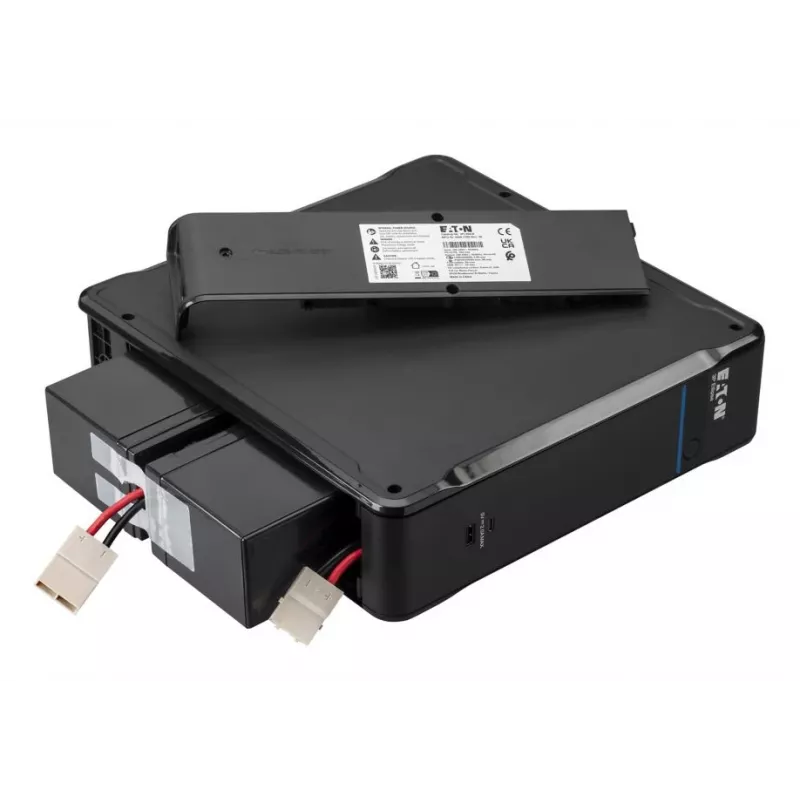

• Battery capacity: 9 Ah
• Input connector: C14
• Colour: Black
• Weight: 7.8 kg
• EAN: 3553340621437

How to use

Place the UPS on a stable, ventilated surface and connect the input to a compatible mains outlet using a C14 lead. Plug protected devices into the UPS's battery‑backed outlets and noncritical equipment into the surge‑only sockets. Use the USB ports to charge mobile devices. On power loss the UPS will automatically switch to battery power; monitor status indicators or connect to management software if available for event logging and orderly shutdown.

Recommendations

Install the unit in a dry, dust‑free environment away from direct heat sources. Periodically test battery operation and replace the battery according to the manufacturer schedule or if backup runtime decreases. Do not overload the UPS beyond its 1040 W rating and ensure critical devices are connected to the battery‑backed outlets.
