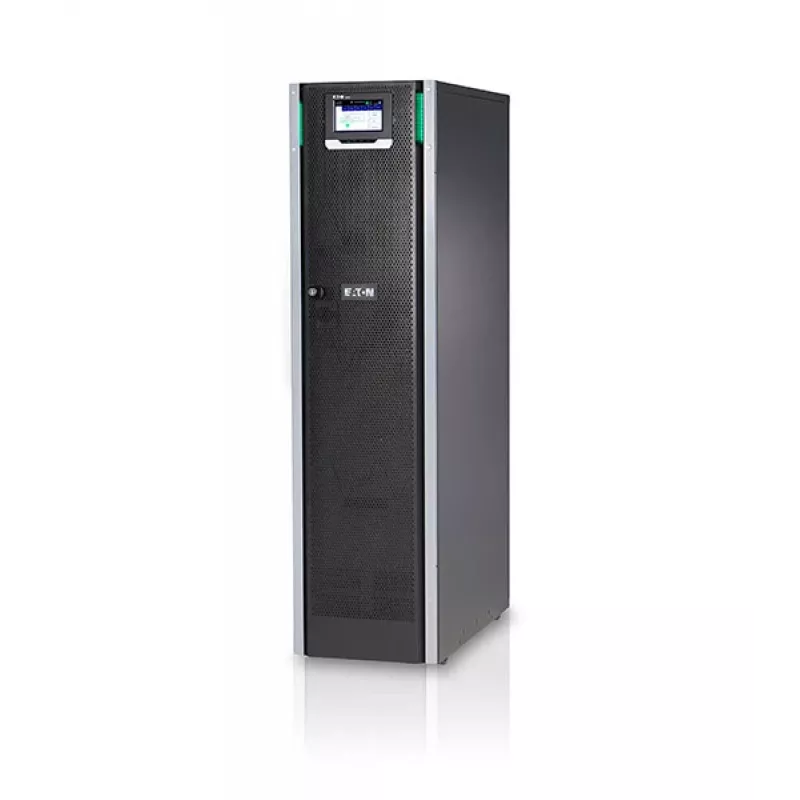

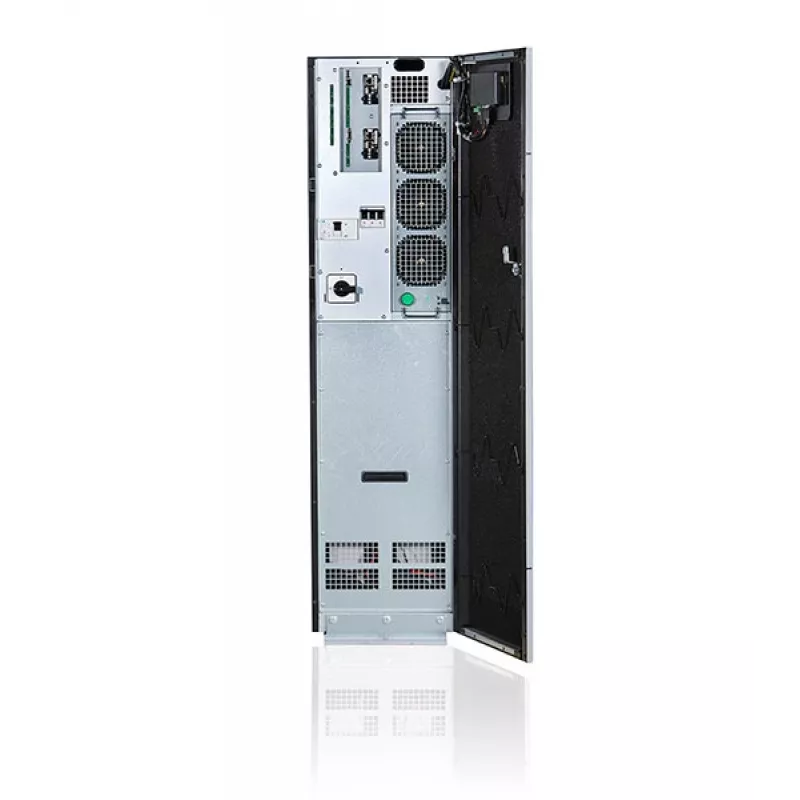

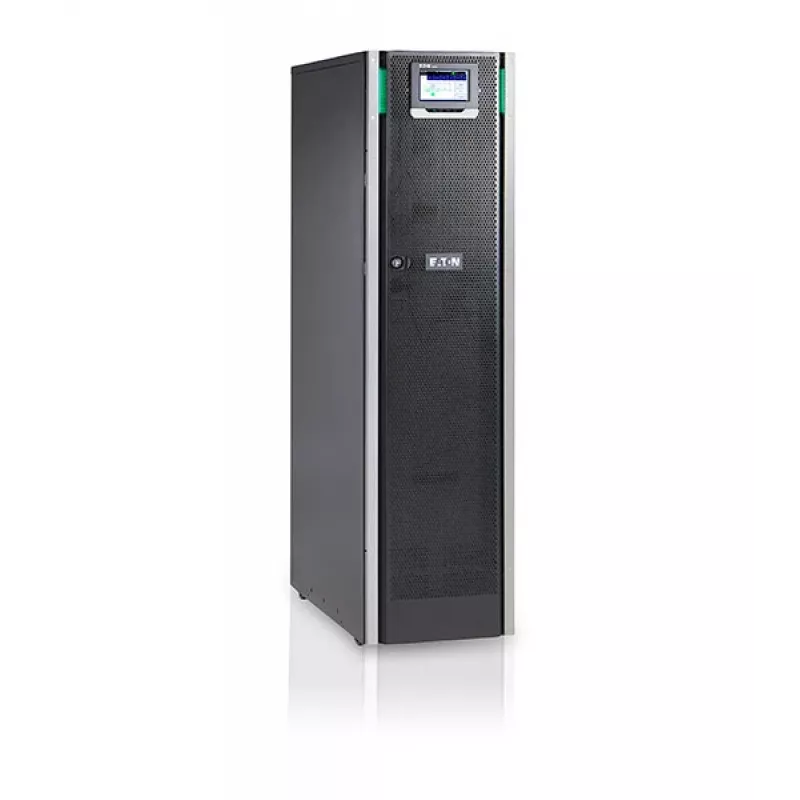

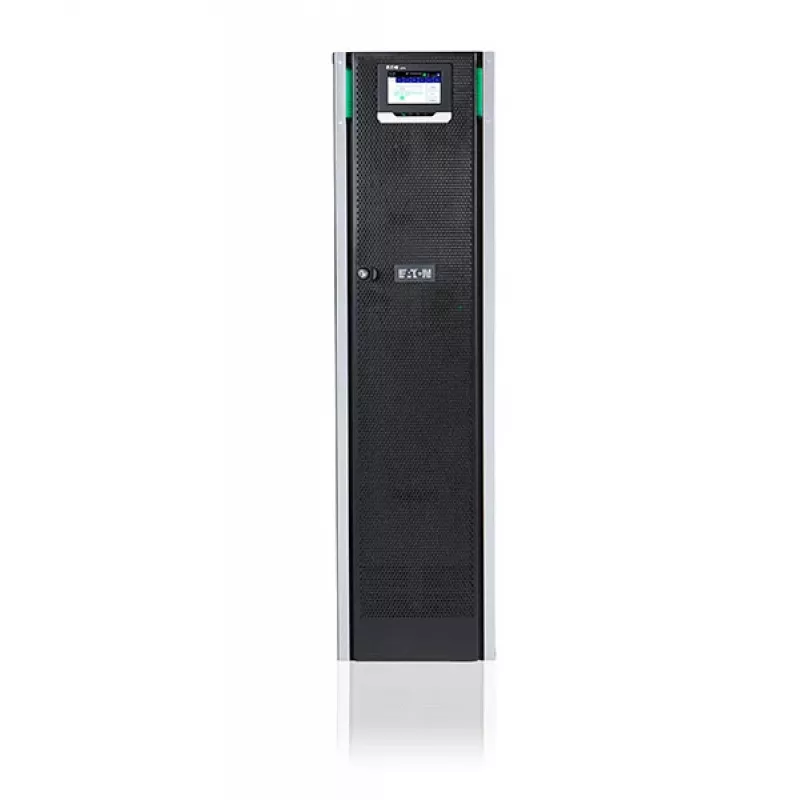

Eaton 93PS 30kW Double-Conversion Online UPS - 3-Phase 220/230/240/380/400/415V Input, Tower

Unplanned power interruptions and grid anomalies can halt critical operations, corrupt data, and damage sensitive equipment. The Eaton 93PS 30kW double-conversion online UPS eliminates these risks by delivering continuous, clean, and regulated three-phase power to mission-critical infrastructure. With unity output power factor and up to 96.3% efficiency in double-conversion mode, it ensures maximum availability and lower energy costs for data centers, industrial processes, and enterprise facilities.

Who is it for

This UPS is engineered for IT managers, facility engineers, and business owners who require uncompromising power protection for high-density server rooms, network closets, industrial automation systems, and medical equipment. Its scalable architecture and advanced battery management make it ideal for growing businesses that need to protect loads from 10 kW up to 200 kW without replacing the core system.

Main features

• Double-conversion online topology with unity output power factor (1.0) delivers 30 kW of clean, continuous power.
• Wide input voltage range (176–276 V line-to-neutral) and auto-sensing 50/60 Hz frequency ensure compatibility with unstable grids.
• Energy Saver System (ESS) boosts efficiency up to 99%, reducing cooling costs and total cost of ownership.
• Scalable up to 200 kW by adding parallel modules, protecting your initial investment as demand grows.
• Graphical LCD display and multiple communication ports (USB, RS-232, network slot, relay contacts) simplify monitoring and integration.
• Automatic and manual bypass provide redundancy and allow maintenance without load interruption.
• Low input harmonic distortion (<3% THDi) and high input power factor (>0.99) minimize impact on upstream infrastructure.

Specifications

• Power rating: 30 kVA / 30 kW
• Topology: Online double-conversion
• Nominal input voltage: 220/230/240/380/400/415 V AC, 3-phase
• Nominal output voltage: 220/230/240 V AC, 3-phase
• Output voltage regulation: ±1% static
• Frequency: 50/60 Hz auto-sensing
• Efficiency (double conversion): up to 96.3%
• Efficiency (ESS mode): up to 99%
• Form factor: Tower (floor-standing)
• Display: Graphical LCD
• Communication: USB, RS-232, network slot (SNMP/Web), relay contacts
• Bypass: Automatic and manual
• Input THDi: <3% at 100% load
• Input power factor: >0.99 at 100% load
• Operating temperature: 0°C to 40°C
• Noise level: <60 dB at 1 meter

Tips

To maximize battery life, keep the UPS in a cool, dry environment and perform regular runtime tests. Use the ESS mode during periods of stable utility power to achieve up to 99% efficiency. When expanding capacity, ensure all parallel modules have identical firmware and battery configurations. For remote monitoring, install an optional network card in the communication slot and configure SNMP traps for proactive alerts.
