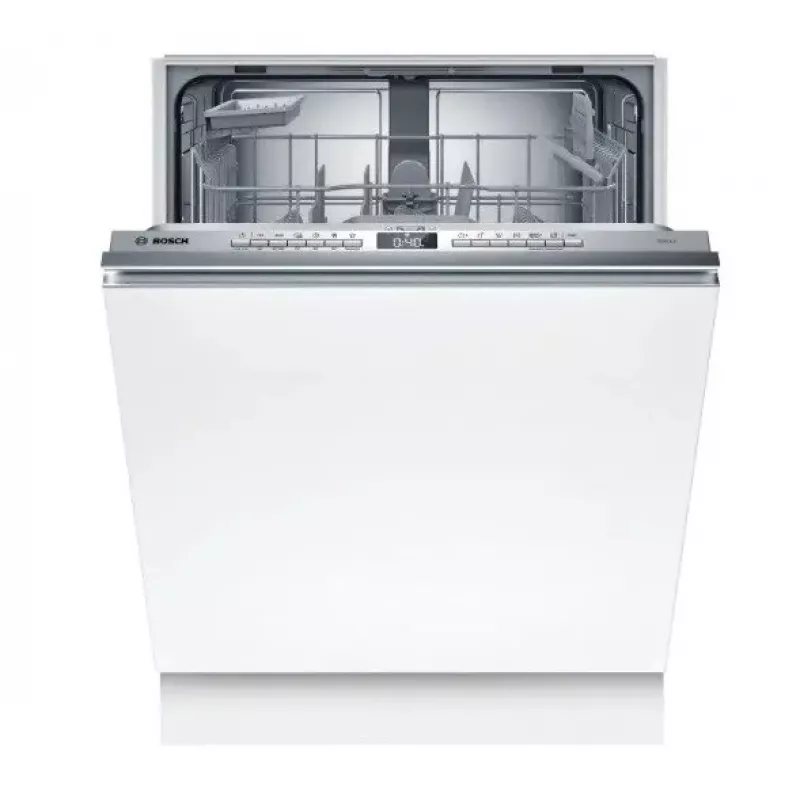

Built-in dishwasher Bosch Serie 4 SMV4HTX11E — 13 place settings, full-size 60 cm, energy class C

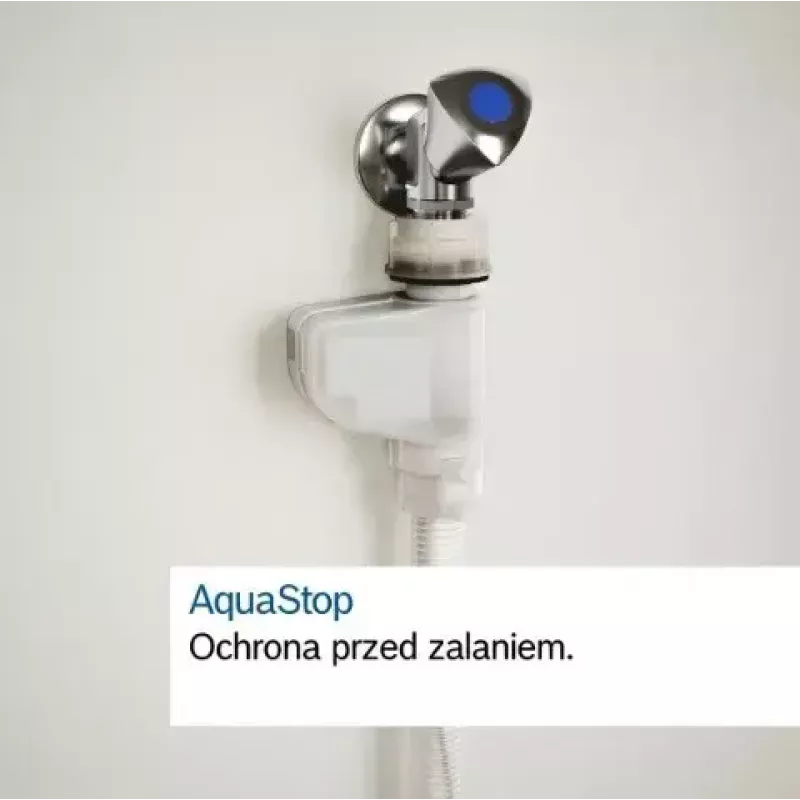

Built-in Bosch Serie 4 SMV4HTX11E is a full-size 60 cm dishwasher designed for integrated kitchen installation. It accommodates 13 place settings, uses 9 L of water per cycle and is rated energy class C. The appliance provides six washing programs including a Pots program, heat-exchanger drying, glass protection and AquaStop leak protection for safe operation.

Advantages

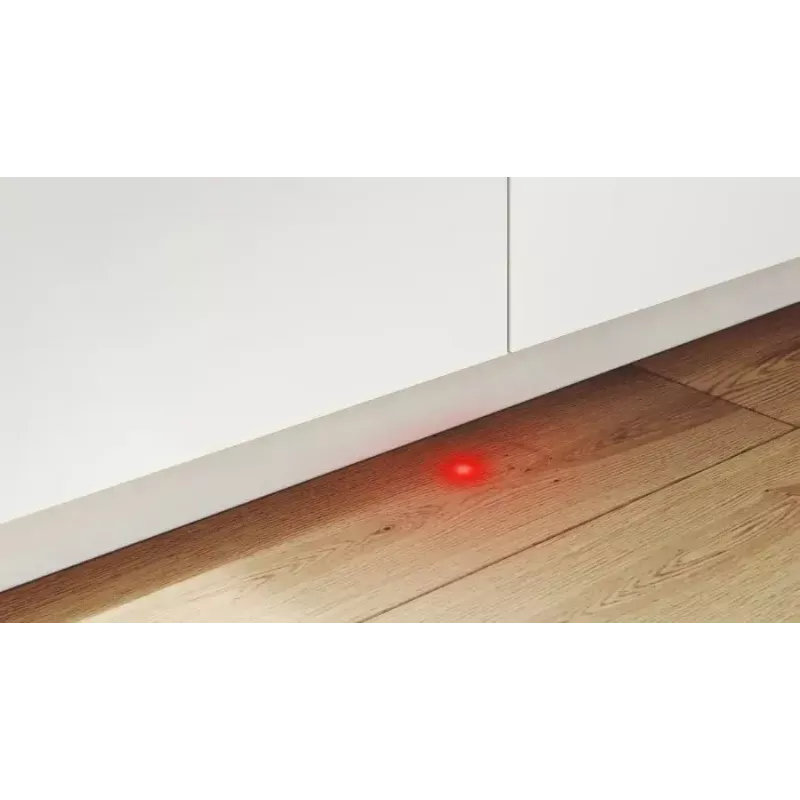

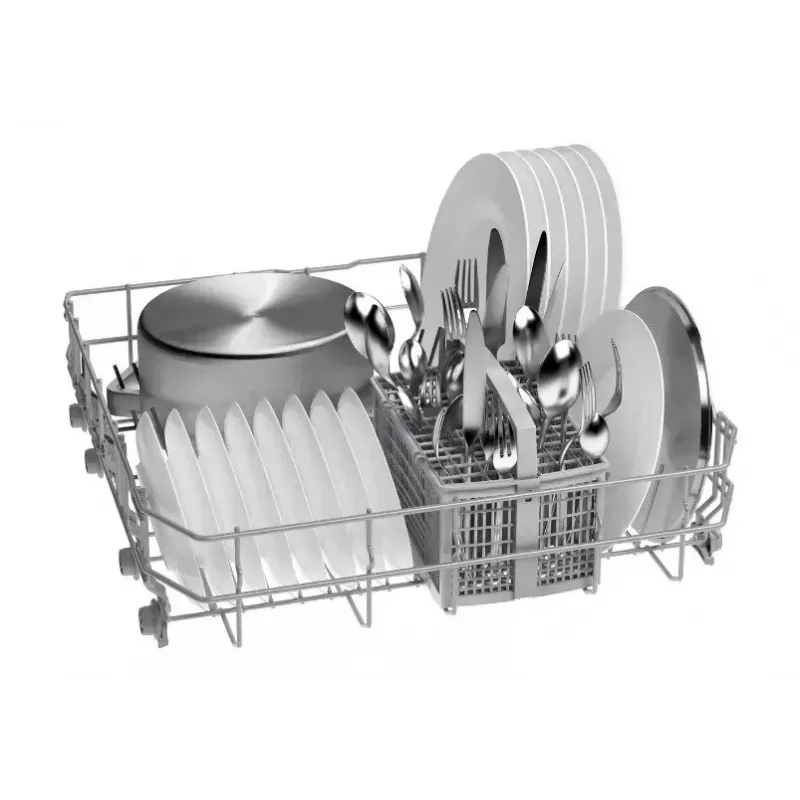

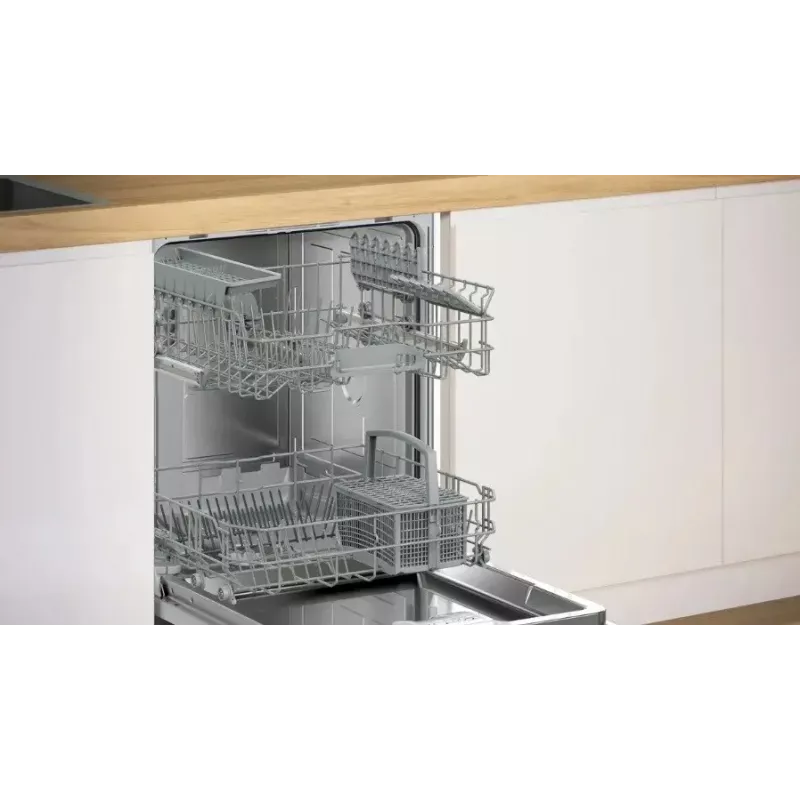

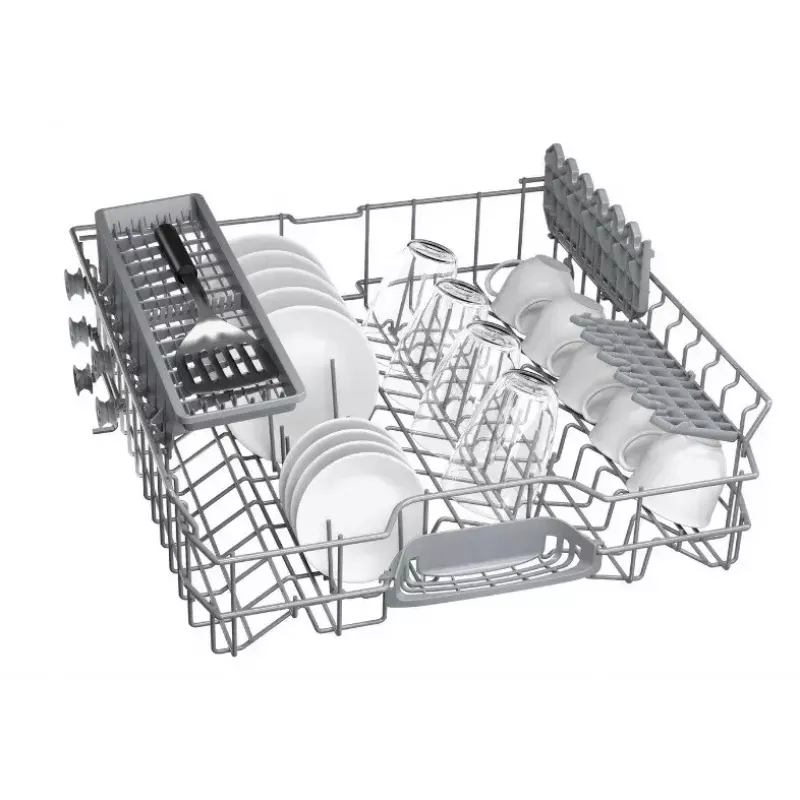

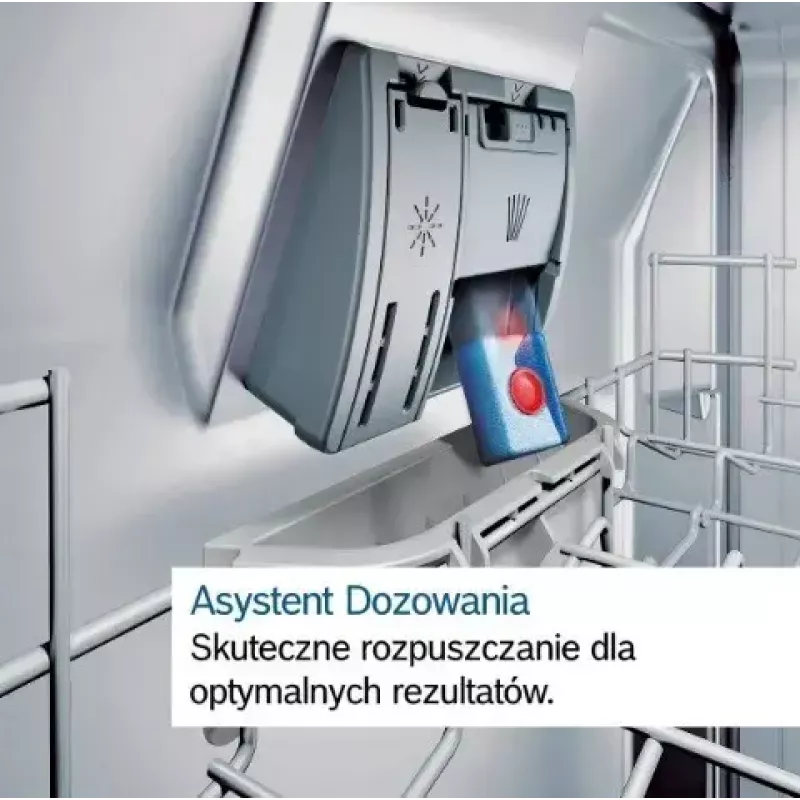

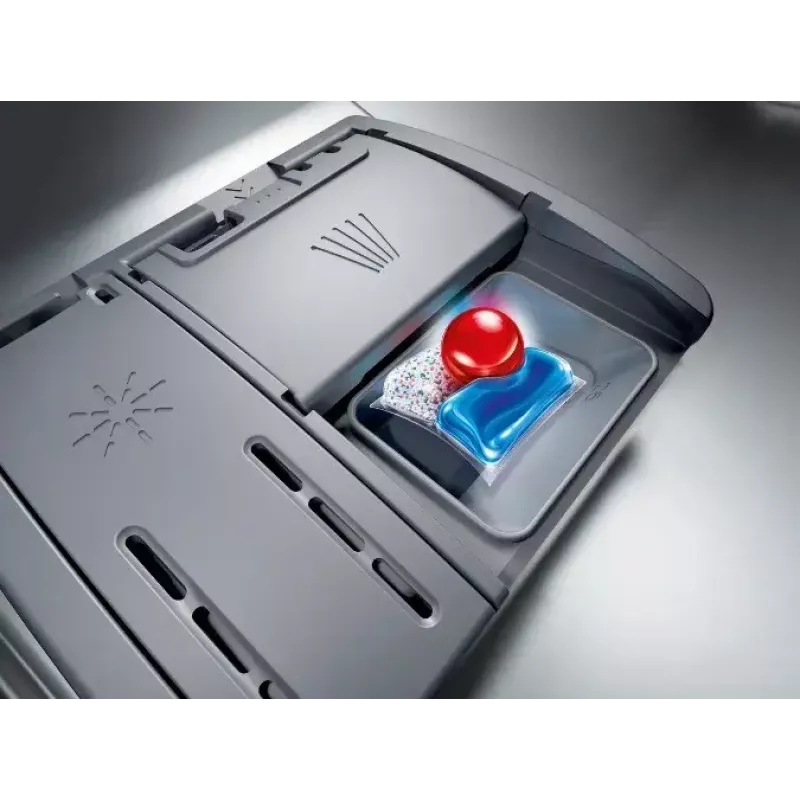

The dishwasher combines a compact full-size layout with flexible loading thanks to an adjustable upper basket and a Vario cutlery basket. It offers practical features such as half-load, delayed start up to 24 hours, low noise operation at 46 dB and Wi‑Fi control for remote monitoring. Heat-exchanger drying and an extra-dry option improve drying results while dosage assistant and floor indicator light simplify daily use.

Suitable for

• Integrated kitchens requiring a 60 cm full-size dishwasher
• Households needing up to 13 place settings capacity
• Users who prefer delayed start and half-load flexibility
• Homes seeking leak protection and low-noise operation

Key specifications

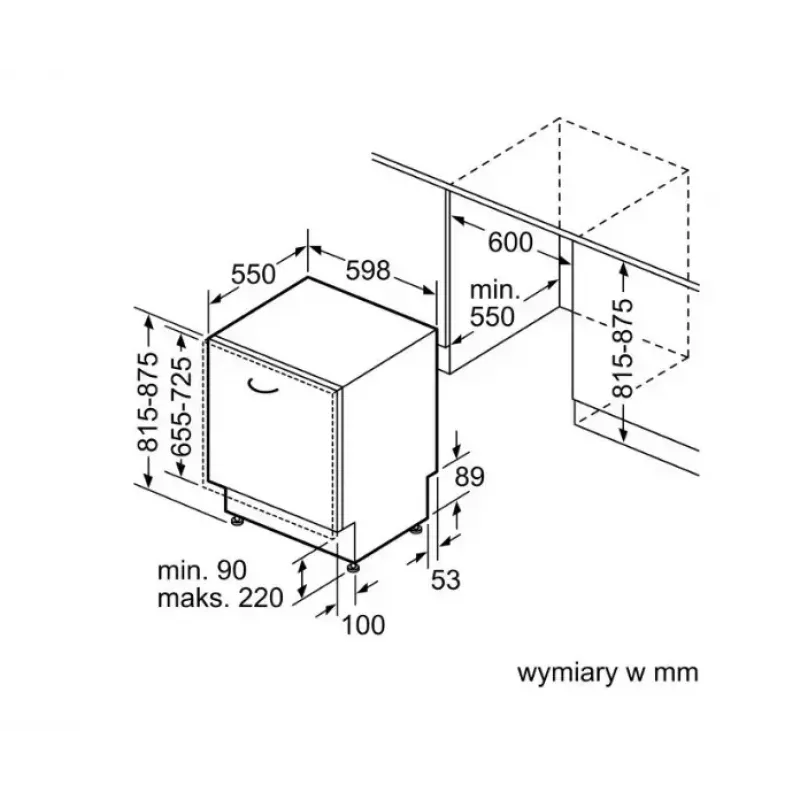

• Dimensions (H×W×D): 815 mm × 598 mm × 550 mm
• Installation compartment (H×W×D): 81.5–87.5 cm × 60 cm × 55 cm
• Place settings: 13
• Number of washing programs: 6 (including Pots)
• Water consumption per cycle: 9 L
• Energy efficiency class: C; energy consumption per 100 cycles: 74 kWh
• Connected load / voltage / frequency: 2400 W / 220–240 V / 50 Hz
• Noise level: 46 dB (noise emission class C)
• Drying: Heat exchanger; Extra dry function available

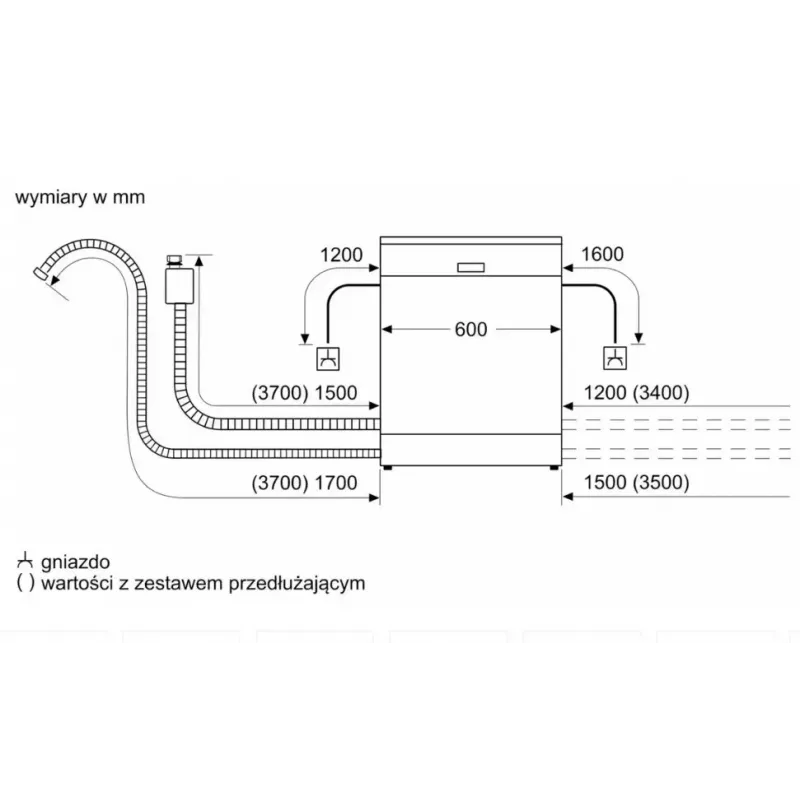

• Hoses & cord: Inlet hose 1.5 m; outlet hose 1.7 m; cord length 1.75 m

How to use

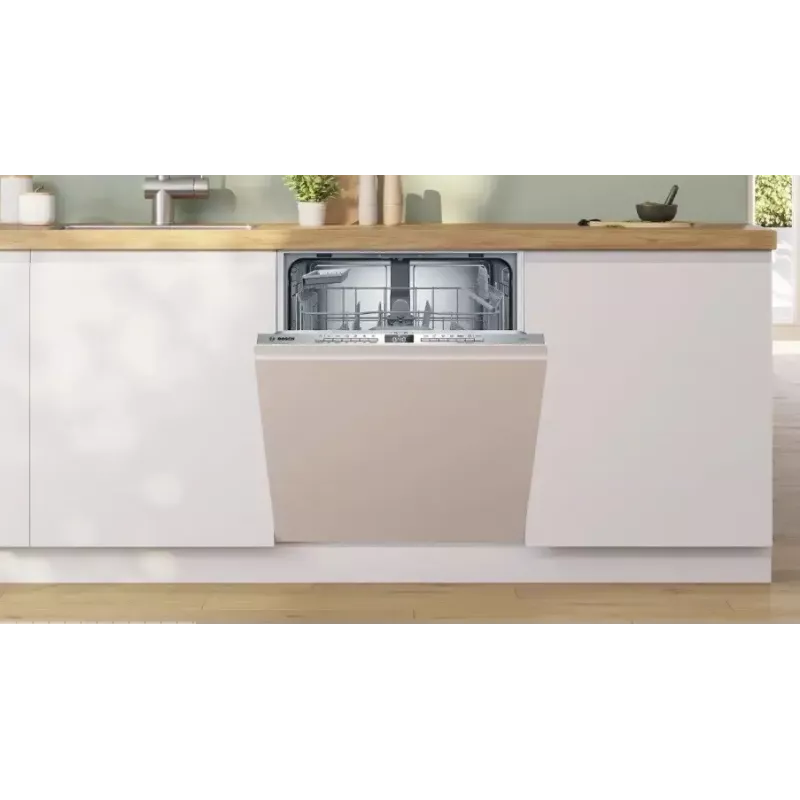

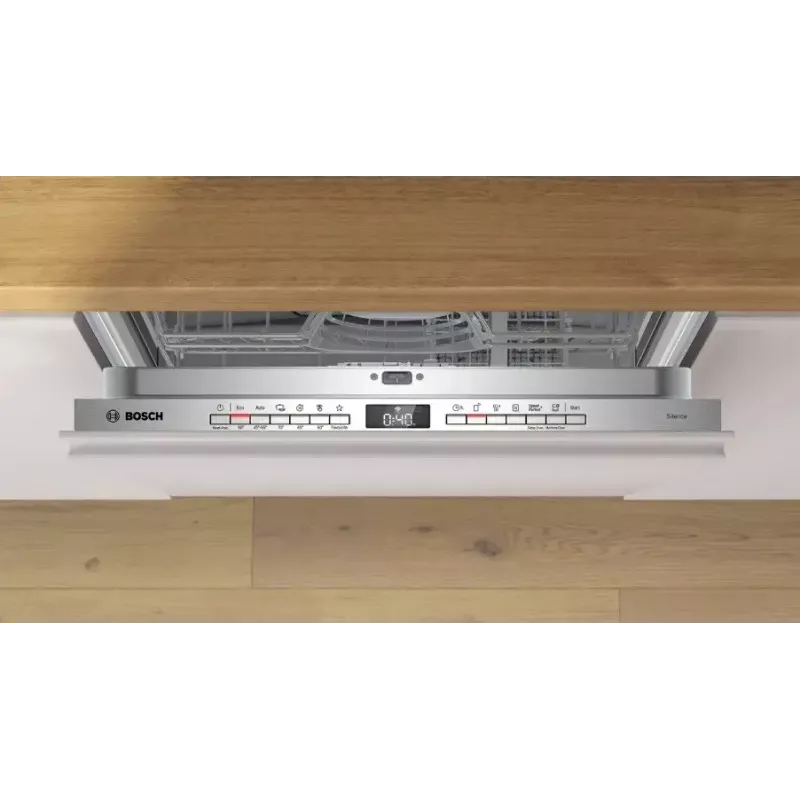

Install the dishwasher as a fully built-in appliance following the specified installation compartment dimensions. Load up to 13 place settings, placing cutlery in the Vario cutlery basket and adjusting the upper basket height as needed for larger items. Select one of the six washing programs (use Pots for heavily soiled cookware), enable half-load if necessary, and set delayed start up to 24 hours when required. Start the cycle and monitor status via the built-in display or Wi‑Fi control; the floor indicator light and remaining time indication provide additional feedback.

Recommendations

Handle electrical connections and cables with care to avoid the risk of electric shock. Use detergents and rinse aids suitable for dishwashers and follow manufacturer guidance for best results and durability.
