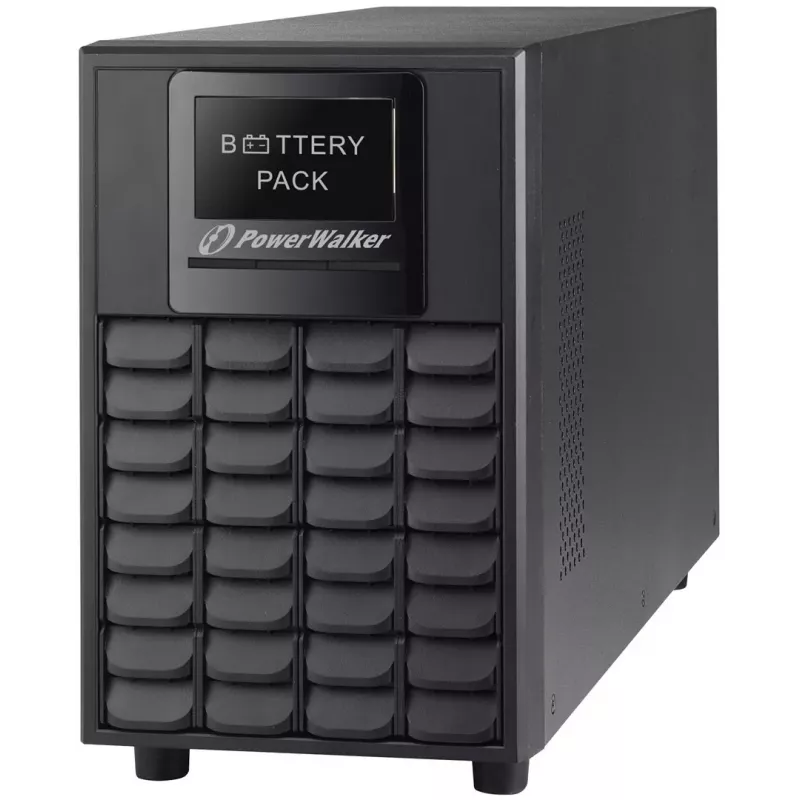

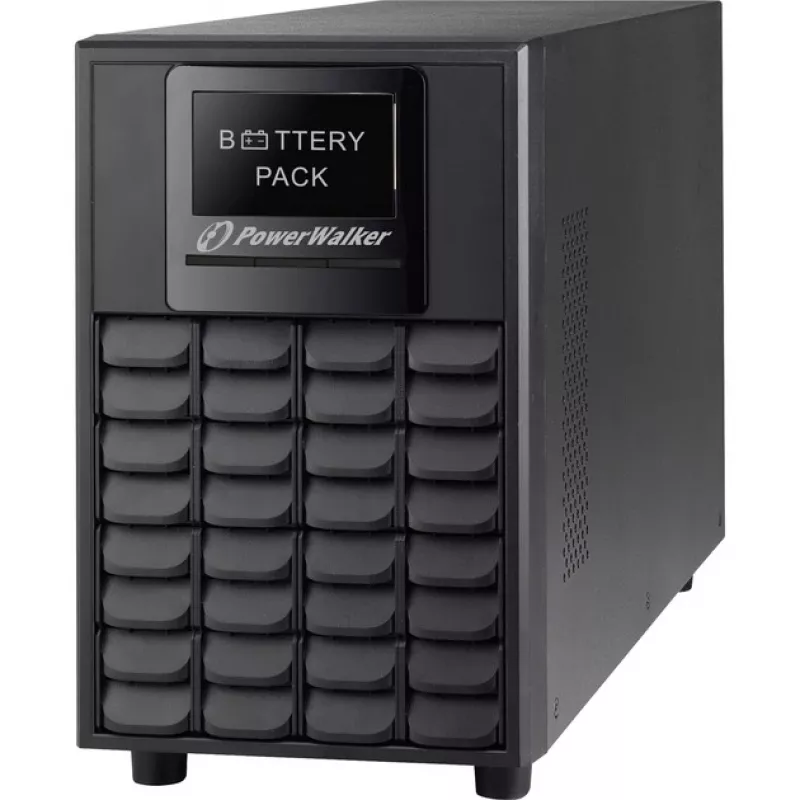

BLUEWALKER PowerWalker External Battery Pack 10120511 for VFI 10000-30000 CPHR/CPHR T UPS

The BLUEWALKER PowerWalker External Battery Pack 10120511 is a high-capacity external battery extension designed to provide extended runtime for PowerWalker VFI 10000-30000 CPHR and CPHR T UPS series. This tower/floor-standing unit contains 20 sealed lead-acid batteries, delivering a total capacity of 2160 Wh at 240 VDC, ensuring reliable backup power for critical applications.

Advantages

Extends UPS runtime significantly during power outages. Maintenance-free SLA batteries reduce service needs. Tower design fits neatly alongside UPS units. Easy connection via dedicated battery connector.

Suitable for

• Data centers and server rooms requiring extended backup power
• Industrial equipment protection
• Telecommunications infrastructure
• Medical and laboratory equipment

Key specifications

• Product Type: External Battery Pack (EBP)
• Compatibility: PowerWalker VFI 10000-30000 CPHR/CPHR T UPS Series
• Battery Type: Sealed Lead-Acid (SLA)
• Nominal DC Output Voltage: 240 VDC
• Number of Batteries Included: 20
• Individual Battery Cell Voltage: 12 V
• Individual Battery Cell Capacity: 9 Ah
• Total Battery Capacity: 2160 Wh
• Expected Battery Lifespan: 3-5 years
• Maintenance-Free: Yes
• Enclosure Type: Tower / Floor Standing
• Color: Black
• Operating Temperature Range: 0 - 40 °C
• Relative Humidity Range: 0 - 95% (non-condensing)
• Certifications: CE, RoHS

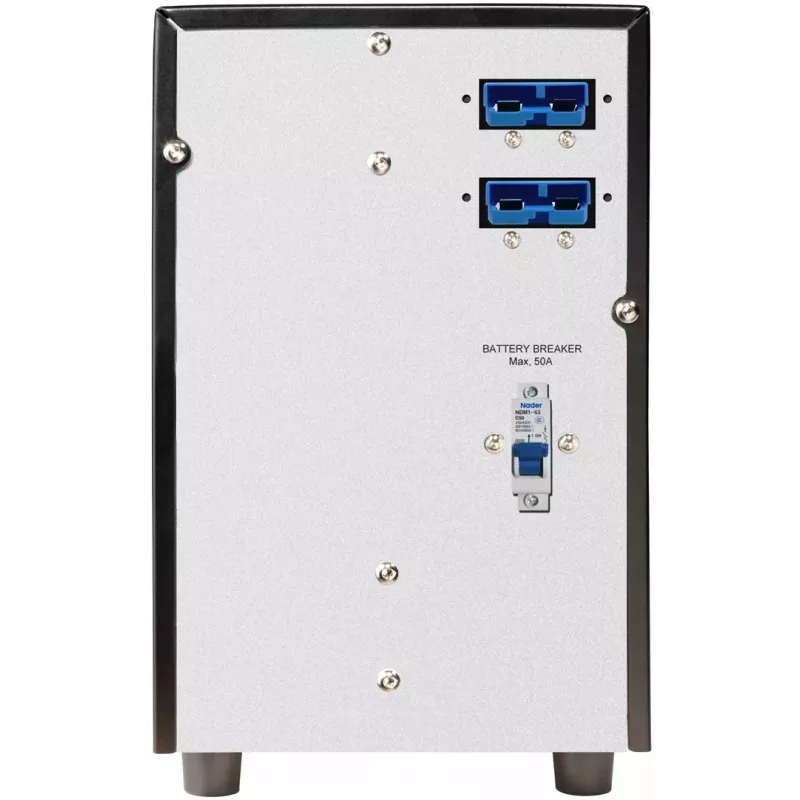

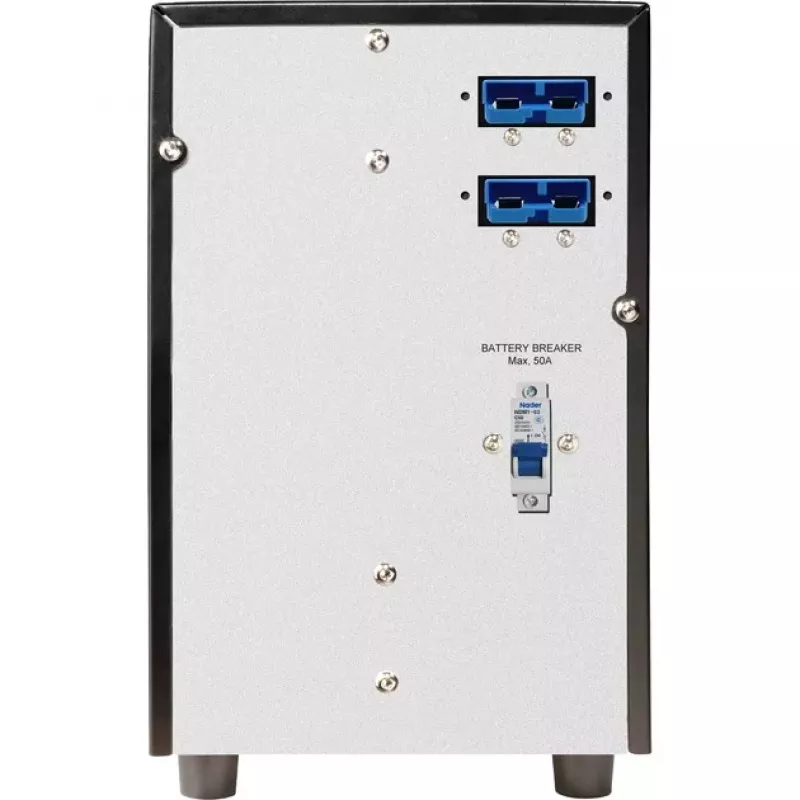

• Connection Interface: Dedicated Battery Connector (to UPS)

Recommendations

For optimal performance, pair this external battery pack with a compatible PowerWalker VFI CPHR or CPHR T UPS. Ensure proper ventilation and follow manufacturer guidelines for installation and maintenance.
