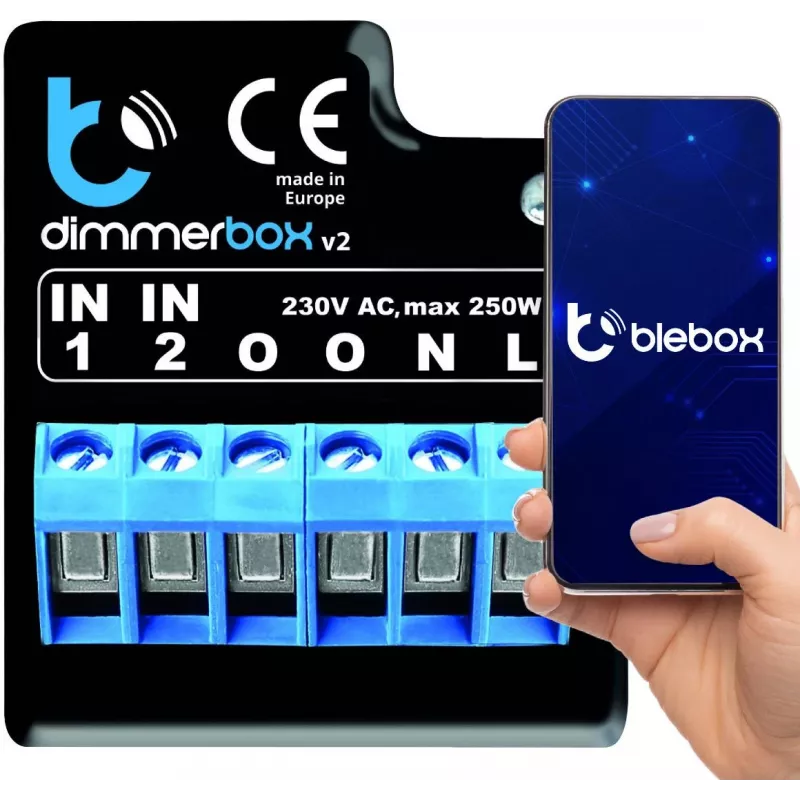

BLEBOX DimmerBox WiFi Smart Dimmer Module 230V 250W for Dimmable Light Sources

The BLEBOX DimmerBox is a compact WiFi smart dimmer module designed for in-wall installation, enabling seamless control of dimmable light sources via the wBox app, web browser, or REST API. It supports both leading and trailing edge phase-cut dimming with auto-detection, making it compatible with incandescent, halogen, dimmable LED, and dimmable CFL bulbs. With a maximum resistive load of 250W and 100W for dimmable LEDs/CFLs, it offers reliable performance for residential and commercial lighting.

Advantages

Easy retrofit into standard Ø60mm in-wall boxes, no neutral wire required in most setups. Soft start/stop extends bulb life, and last setting memory ensures lights return to your preferred brightness after power loss. Built-in overload, overvoltage, overtemperature, and short-circuit protection guarantee safe operation. The polyurethane housing is non-halogen and self-extinguishing for added safety.

Suitable for

• Dimmable LED and CFL bulbs
• Incandescent and halogen lamps
• Smart home lighting control via WiFi
• Integration with voice assistants (Amazon Alexa, Google Assistant)

Key specifications

• Input/Output Voltage: 230V AC
• Max Load (Resistive): 250W
• Max Load (Dimmable LED/CFL): 100W
• Dimming Technology: Phase-cut (Leading/Trailing Edge, auto-detection)
• Dimming Range: 0-100%
• Connectivity: WiFi 802.11 b/g/n, 2.4 GHz
• Control: wBox App, Web Browser, REST API
• Operating Temperature: -10°C to 50°C
• Standby Power: < 1W
• Mounting: In-wall box (Ø60mm)
• Protection: Overload, Overvoltage, Overtemperature, Short-circuit
• Number of Channels: 1
• Housing Material: Polyurethane composition, non-halogen, self-extinguishing
• Security: WPA2-PSK, AEAD Encryption

Recommendations

For optimal performance, use only dimmable LED or CFL bulbs. Ensure the WiFi signal is strong at the installation location. The DimmerBox is not suitable for controlling motors or inductive loads.
