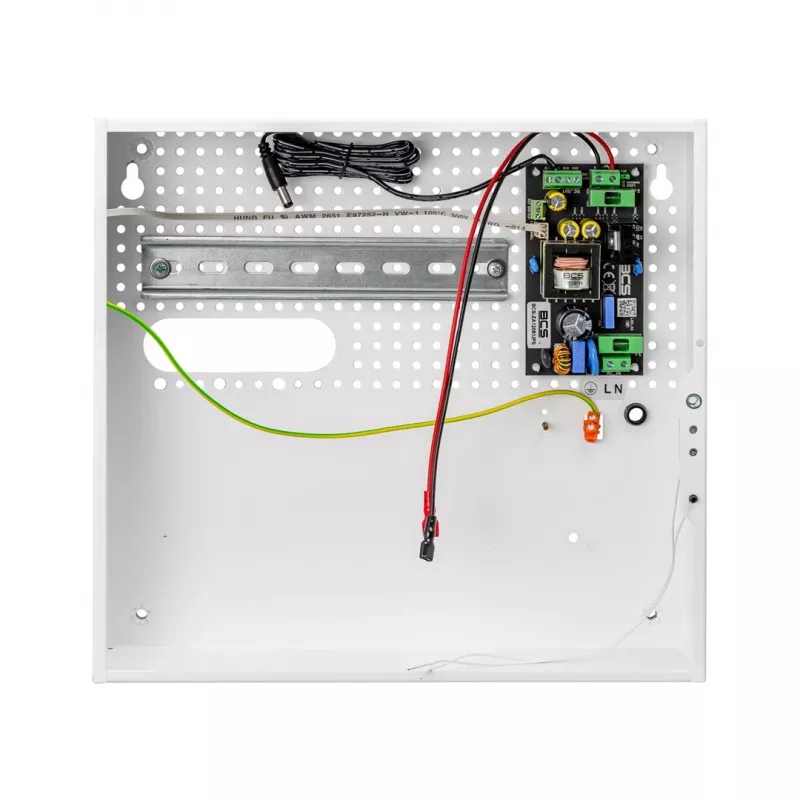

BCS ZA1206/UPS/F/KD 72W 12V DC UPS Power Supply with Battery Charger, Metal Enclosure, Wall Mount

Standard power supplies leave security systems dead during outages. The BCS ZA1206/UPS/F/KD changes that by integrating a UPS function with a built-in battery charger, maintaining continuous 12V DC output even when mains power fails. This unit is essential for CCTV cameras, access control panels, and alarm systems where uptime is critical. With a robust 72W output and support for 7Ah or 17Ah lead-acid batteries, it delivers reliable backup power in a compact, wall-mountable metal enclosure.

Highlights

• UPS functionality with automatic switchover to battery backup
• Adjustable output voltage from 12V to 15V DC
• High efficiency with low ripple & noise (<100mVp-p)
• Comprehensive protection: short circuit, overload, overvoltage, overheat, battery deep discharge, and overcharge
• LED indicators for AC power, DC output, and battery status
• Supports 7Ah or 17Ah lead-acid batteries (AGM/Gel)

In daily use

The ZA1206/UPS/F/KD simplifies installation and maintenance. Its wide input voltage range (100-240V AC, 50/60Hz) accommodates various electrical environments, while the adjustable output lets you fine-tune voltage for specific devices. The metal housing ensures durability, and wall mounting keeps it out of the way. During a power cut, the unit seamlessly switches to battery power, keeping your security infrastructure operational without interruption.

Full specifications

• Input voltage: 100-240V AC, 50/60Hz
• Output voltage: 12V DC (adjustable 12-15V DC)
• Max output current: 6A
• Total output power: 72W
• Battery charging current: 1A
• Supported battery type: Lead-acid (AGM/Gel)
• Battery capacity support: 7Ah or 17Ah
• Protection features: Short Circuit (SCP), Overload (OLP), Overvoltage (OVP), Overheat (OHP), Battery Deep Discharge, Battery Overcharge
• Status indicators: LED (AC Power, DC Output, Battery Status)
• Enclosure material: Metal
• Mounting type: Wall-mountable
• Operating temperature: -10°C to +40°C
• Relative humidity: 10% to 90% (non-condensing)
• Application: Security Systems (CCTV, Access Control, Alarm)
• Output ripple & noise: <100mVp-p

Final note

Keep your security systems running even when the power goes out—the BCS ZA1206/UPS/F/KD is the backup you can rely on.
