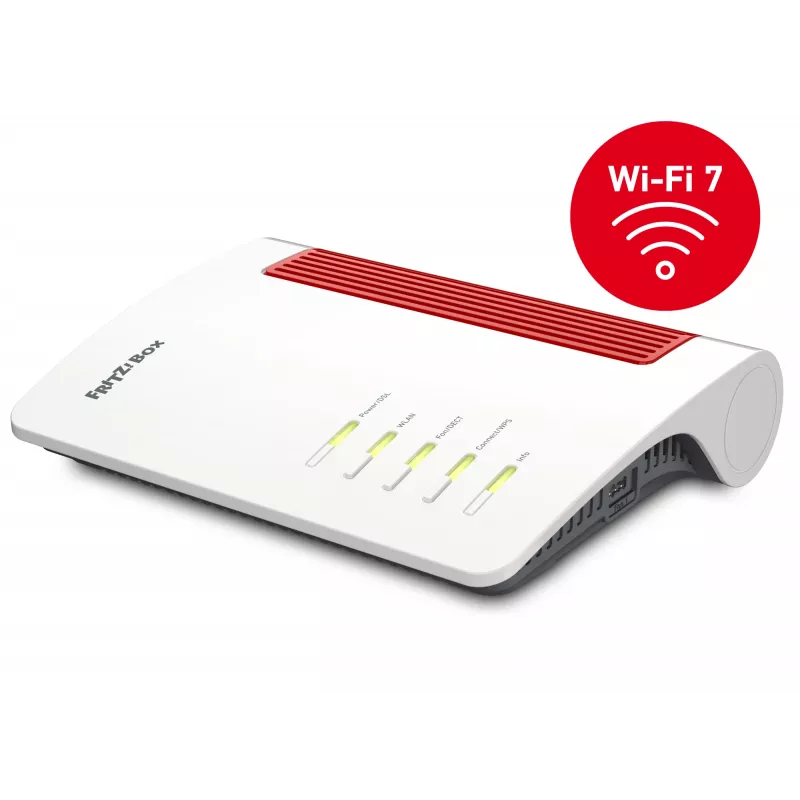

Box FRITZ! 7690 International wireless router 2.5 Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White

The FRITZ!Box 7690 Dual-band Wi-Fi 7 is a tabletop router designed to provide high-speed wireless connectivity for home and small office networks. Featuring Wi‑Fi 7 (802.11be) technology and dual-band operation (2.4 GHz and 5 GHz), the device supports a maximum WLAN data transfer rate of up to 5760 Mbit/s. The router includes a 2.5 Gigabit Ethernet interface and three RJ-45 LAN ports for wired connections, a USB port for shared storage or printers, and a 4x4 antenna configuration to support multiple simultaneous streams and stable coverage. Security features include support for WPA2 and WPA3 encryption standards.

Advantages

The FRITZ!Box 7690 combines the latest Wi‑Fi 7 performance with backward compatibility to earlier Wi‑Fi standards, allowing a mix of devices to connect at optimal speeds. Its 2.5 Gigabit Ethernet capability enables faster wired transfers and reduced bottlenecks for network-attached devices. The integrated USB port and multiple LAN ports provide flexible options for file sharing, printer access, and wired peripherals. The 4x4 antenna design and dual-band operation improve throughput and multi-device handling while built-in security protocols protect wireless traffic.

Suitable for

• High-speed internet access in homes and small offices
• Streaming high-resolution video and online gaming
• Large households or offices with multiple simultaneous users
• Wired network devices requiring higher-than-1GbE throughput
• Shared network storage and peripheral connectivity via USB and LAN

Key specifications

• Wi‑Fi bands: Dual-band (2.4 GHz / 5 GHz)
• Top Wi‑Fi standard: Wi‑Fi 7 (802.11be) with backward compatibility to Wi‑Fi 6/5/4 and legacy 802.11 modes
• Maximum WLAN data transfer rate: 5760 Mbit/s

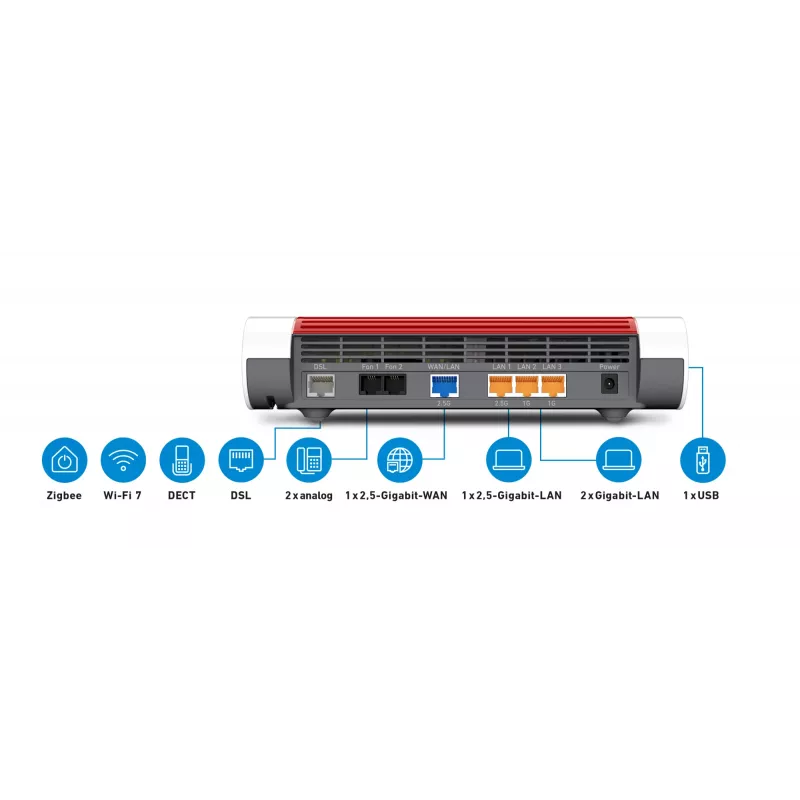

• Ethernet LAN interface: 2.5 Gigabit Ethernet
• Ethernet LAN ports: 3 × RJ-45
• USB port: Yes (for storage/printer sharing)
• Antenna configuration: 4x4
• Device weight: 0.657 kg
• Product colour: White

How to use

Place the FRITZ!Box 7690 on a stable tabletop or shelf in a central location to maximize wireless coverage. Connect the router to your internet modem or WAN connection using the provided cables and power it on. Use the FRITZ!Box web interface or the AVM setup assistant to complete initial configuration, including selecting SSID names and passwords for the 2.4 GHz and 5 GHz bands, enabling WPA2/WPA3 security, and configuring Ethernet and USB sharing options. Connect wired devices to the RJ-45 LAN ports or attach storage/printers to the USB port as needed. Reboot the device after significant configuration changes to ensure all settings are applied.

Recommendations

Place the router away from large metal objects and other sources of interference, position it elevated for better coverage, and keep firmware up to date via the FRITZ!Box update feature to maintain security and performance. For devices that support Wi‑Fi 7, use the 5 GHz band for highest throughput; reserve the 2.4 GHz band for long-range or legacy devices. Use WPA3 where supported for stronger wireless protection.
