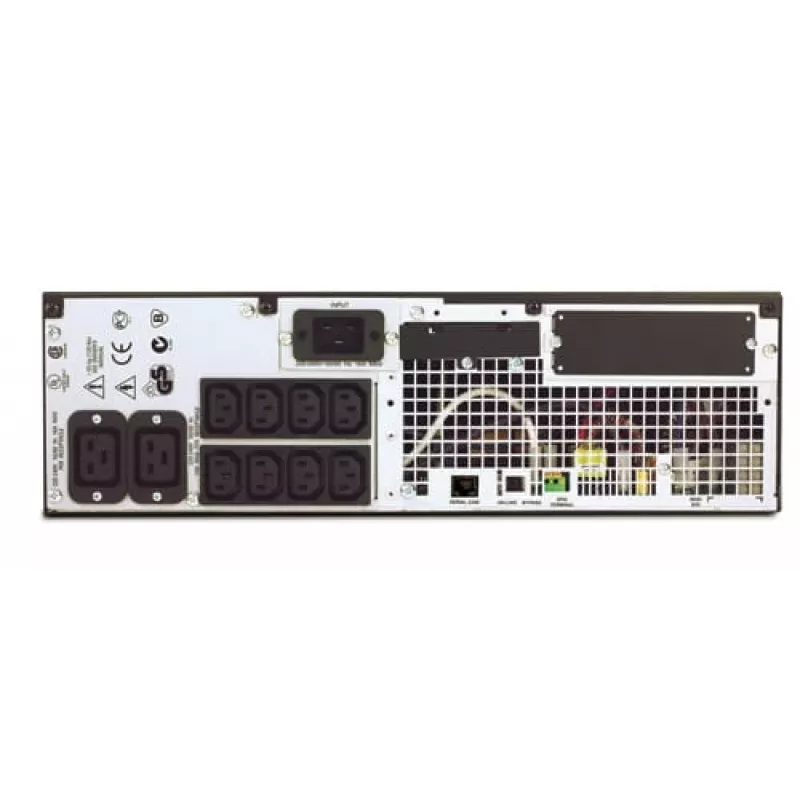

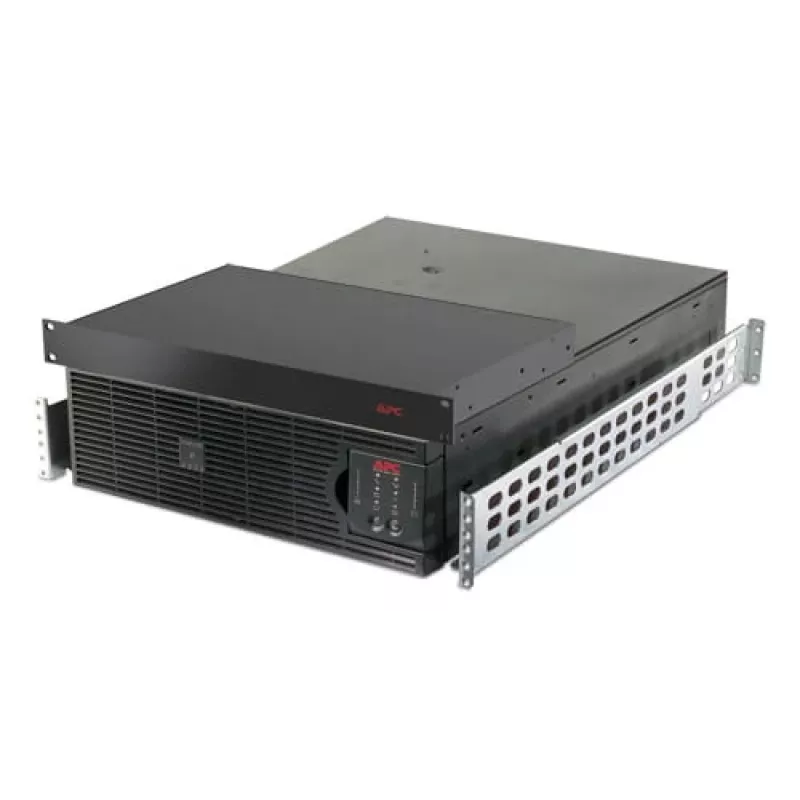

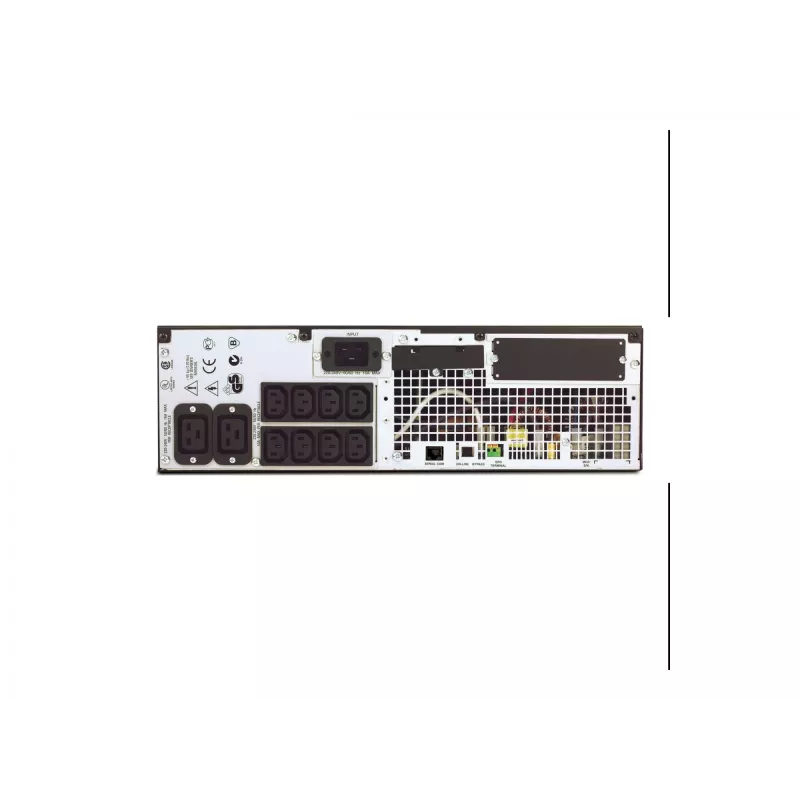

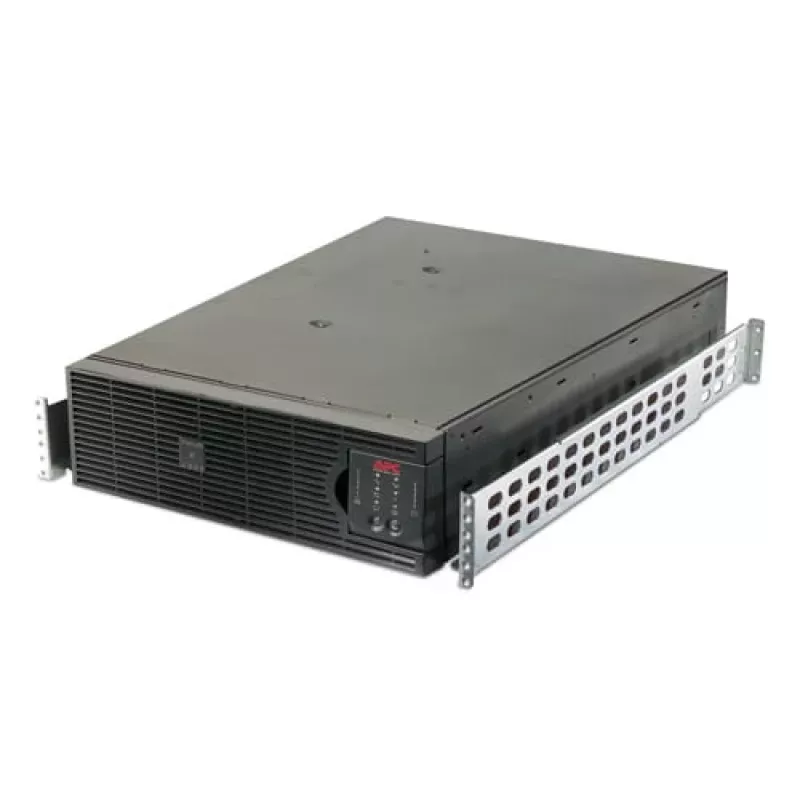

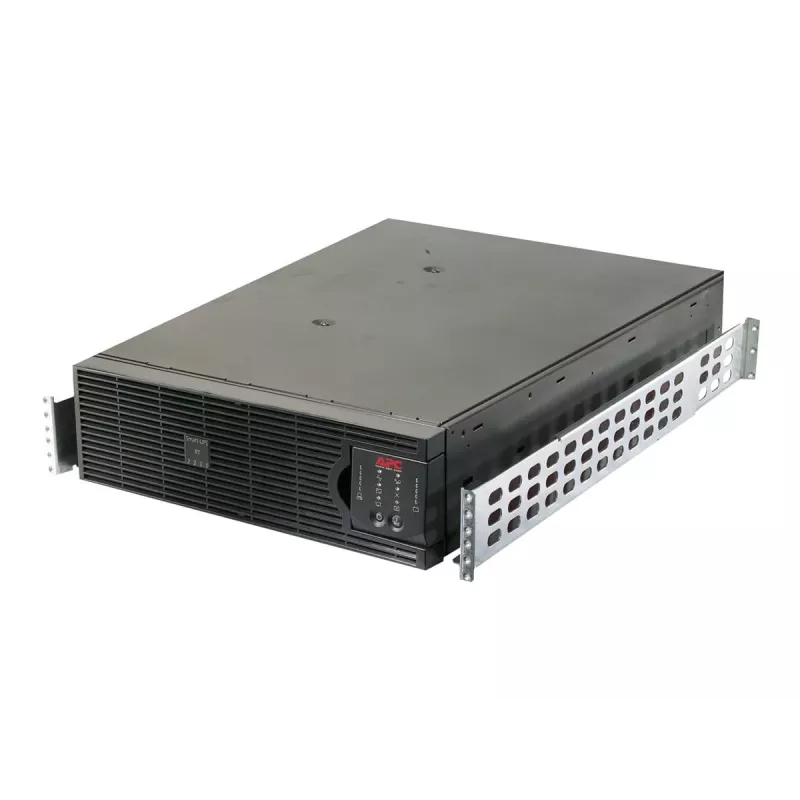

APC Smart-UPS RT 2200VA 230V - Marine

APC Smart-UPS RT 2200VA 230V - Marine is a high-performance rackmount uninterruptible power supply designed for marine environments where reliable AC power is critical. With an output power capacity of 2.2 kVA and a continuous output of 1540 W, this UPS provides regulated, on-line double-conversion power conditioning to protect sensitive electronic and communication equipment from voltage variations, frequency changes, and power interruptions. The unit uses sealed lead-acid (VRLA) battery technology with a rapid recharge time, and is housed in a 3U black chassis suitable for standard racks or cabinets.

Advantages

The APC Smart-UPS RT 2200VA 230V - Marine offers online double-conversion topology for consistent, regulated output regardless of input fluctuations, ensuring clean sinewave power to connected loads. Its rackmount 3U form factor saves space while providing ten AC outlets including C13 and C19 couplers for flexible device connectivity. Sealed lead-acid batteries deliver dependable backup power with a recharge time of approximately 2.5 hours, and the unit complies with marine and international standards for electromagnetic compatibility and safety, providing a certified solution for demanding installations.

Suitable for

• Marine communication and navigation systems
• Onboard servers and network infrastructure
• Control rooms and monitoring equipment on vessels
• Critical industrial electronics requiring regulated power

Key specifications

• Output power capacity: 2.2 kVA
• Continuous output power: 1540 W
• Nominal output voltage: 230 V
• Input operation voltage (minimum): 100 V
• AC outlet types: C13 and C19 couplers; total outlets: 10
• Battery technology: Sealed Lead Acid (VRLA)
• Battery recharge time: approximately 2.5 hours
• Form factor: 3U rackmount
• Product colour: Black
• Compliance and certifications: RoHS, CE, DNV, EMC and safety standards

How to use

Install the APC Smart-UPS RT in a standard 19-inch rack using the included mounting hardware and ensure adequate ventilation around the 3U chassis. Connect critical equipment to the C13 and C19 outlets according to load balancing recommendations, and connect the UPS to the facility AC input that meets the minimum input voltage requirements. Allow the internal sealed lead-acid batteries to charge fully before relying on battery backup; the typical recharge period is about 2.5 hours. Configure monitoring and shutdown settings through the available management interface to enable orderly shutdowns and automated alerts during extended power events.

Recommendations

To maximize battery life and reliability in marine installations, maintain a controlled ambient temperature, perform regular battery health checks, and follow the manufacturer’s schedule for preventive maintenance. Use properly rated cabling and ensure the UPS is installed in a location with protection from salt spray and excessive humidity to preserve electronics and connectors.
