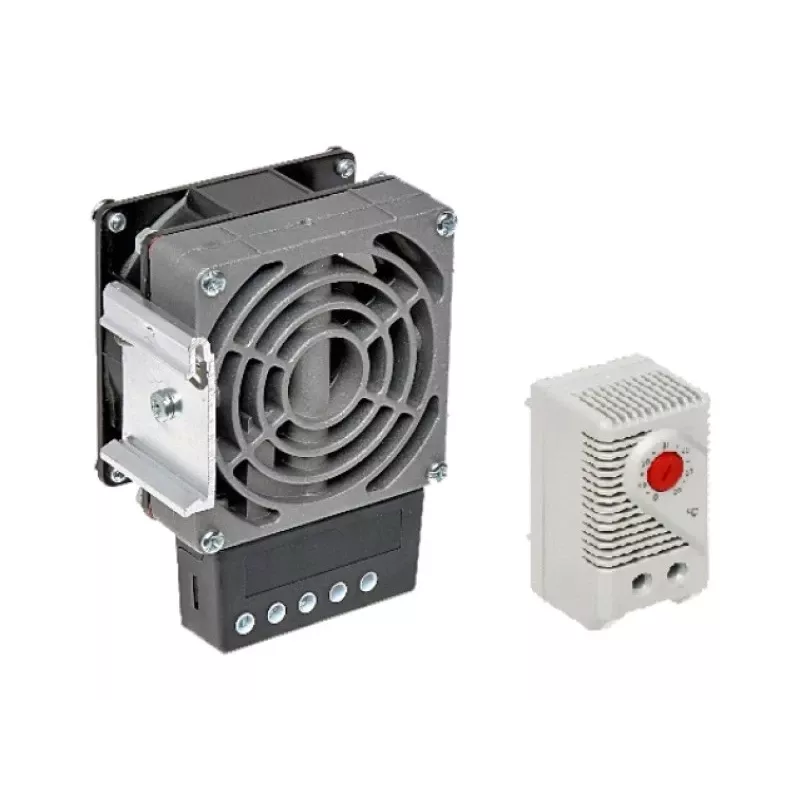

ALANTEC SA-H-100-T-01 100W Fan Heater with Thermostat for Outdoor Enclosures

The ALANTEC SA-H-100-T-01 is a compact and efficient 100W fan heater designed specifically for outdoor electrical enclosures and control panels. Equipped with an integrated thermostat and PTC heating element, it provides reliable frost protection and temperature regulation in harsh environments.

Advantages

This heater ensures optimal operating conditions for sensitive electronic equipment by preventing condensation and maintaining a stable internal temperature. The PTC resistor technology offers self-regulating heat output and enhanced safety, while the built-in thermostat allows precise control within a range of 0°C to +60°C. Its compact design and 35mm DIN rail mounting make installation quick and easy.

Suitable for

• Outdoor electrical enclosures
• Control panels in industrial settings
• Telecommunication cabinets
• Any application requiring frost protection and temperature management

Key specifications

• Power Output: 100 W
• Supply Voltage: 230V AC, 50/60 Hz
• Heating Element: PTC Resistor
• Integrated Thermostat: Yes, 0°C to +60°C
• Airflow: 45 m³/h
• Mounting: 35mm DIN Rail
• Protection Class: IP20
• Housing Material: UL94 V-0 Flame Retardant Plastic
• Connection: 2-pole Terminal Block, max 2.5 mm²
• Operating Temperature: -20°C to +70°C
• Fan Life Expectancy: 50,000 hours at 25°C

Recommendations

For optimal performance, ensure proper ventilation and avoid obstructing the airflow. This heater is ideal for use in conjunction with a temperature controller for advanced regulation.
